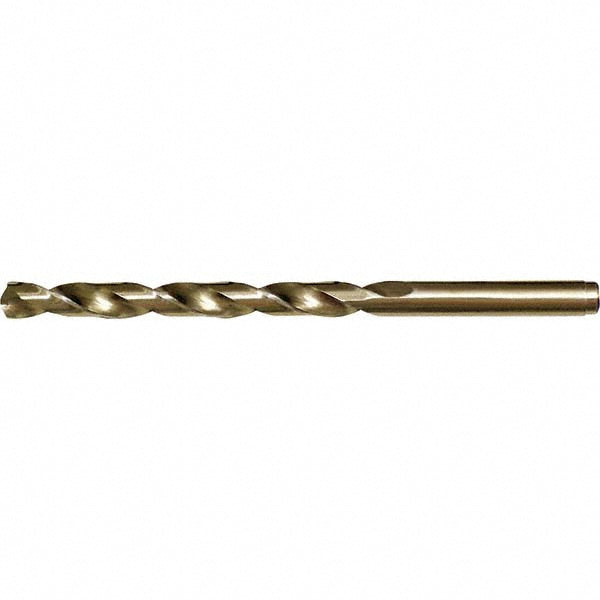

#38 Cobalt Drill Bit, Gold, 135° point - Cle-Force C68438
MFR# C68438Series 1603
$2.16List $2.77
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Cle-Force C68438 is a #38 Cobalt drill bit with a Gold finish, 135° point. Suited for aluminum, superalloy, titanium. 1-7/16 flute length, 2-1/2 overall length. Series 1603.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit finish coatingGold
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size0.1015
Drill bit size range0.1000 - 0.1500
Drill bit size wire#38
Drill point angle degrees135
Flute length in1-7/16
Flute typeSpiral
Number of flutes2
Overall length in2-1/2
Point typeSplit
Primary workpiece materialAluminum; Superalloy; Titanium
Shank diameter0.1015
Shank length1.0626
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
