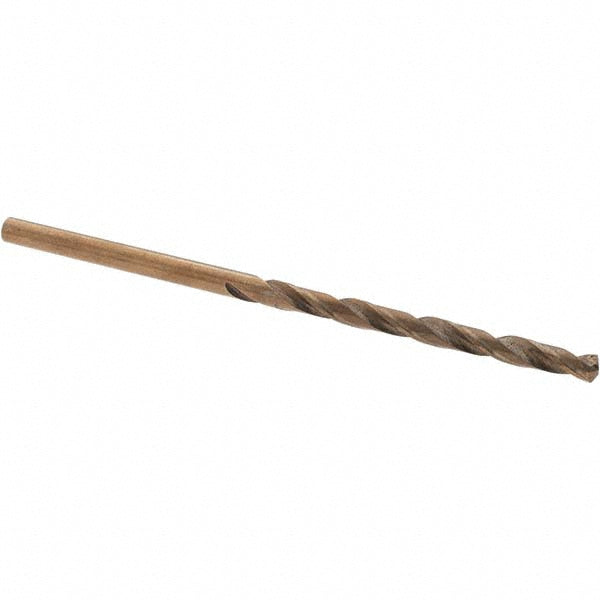

#40 Cobalt Drill Bit, Gold, 135° point - Cle-Force C68440

Cle-Force

#40 Cobalt Drill Bit, Gold, 135° point - Cle-Force C68440

MFR# C68440Series 1603

$1.94List $2.49 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

The Cle-Force C68440 is a #40 Cobalt drill bit with a Gold finish, 135° point. Suited for aluminum, superalloy, titanium. 1-3/8 flute length, 2-3/8 overall length. Series 1603.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit finish coatingGold
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size0.0980
Drill bit size range0.0500 - 0.1000
Drill bit size wire#40
Drill point angle degrees135
Flute length in1-3/8
Flute typeSpiral
Number of flutes2
Overall length in2-3/8
Point typeSplit
Primary workpiece materialAluminum; Superalloy; Titanium
Shank diameter0.0980
Shank length1.0000
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
