Cle-Force

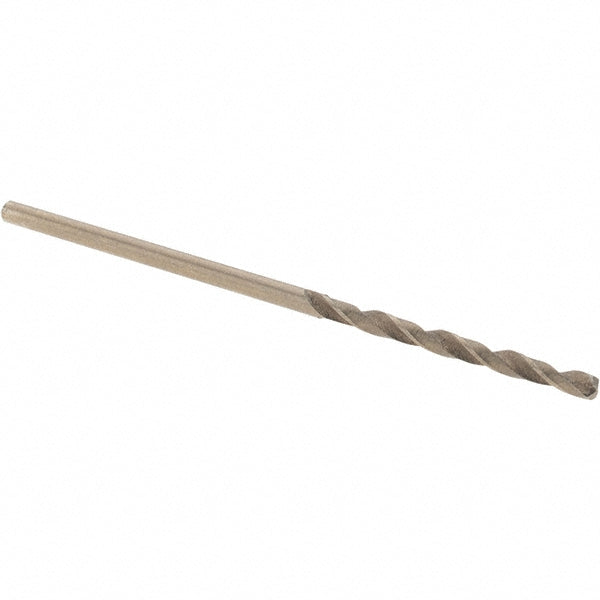

#52 Cobalt Drill Bit, Straw, 135° point - Cle-Force C68452
MFR# C68452Series 1603
$1.90List $2.39
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 12 — minimum order 12
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingStraw
Description
The Cle-Force C68452 is a #52 Cobalt drill bit with a Straw finish, 135° point. Suited for stainless steel, hardened materials. 7/8 flute length, 1-7/8 overall length. Series 1603.
Specifications
Coating finishStraw
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size0.0635
Drill bit size range0.0500 - 0.1000
Drill bit size wire#52
Drill point angle degrees135
Flute length in7/8
Flute typeRegular Spiral
Number of flutes2
Overall length in1-7/8
Point typeSplit Point
Primary workpiece materialStainless Steel; Hardened Materials
Shank diameter0.0635
Shank length1.0004
Shank typeStraight
Spiral typeRegular
StandardsASME B94.11M
Tool performanceHigh Performance
Web configurationTapered
