#60 Cobalt Drill Bit, Gold, 135° point - Cle-Force C68460

Cle-Force

#60 Cobalt Drill Bit, Gold, 135° point - Cle-Force C68460

MFR# C68460Series 1603

$1.88List $2.41 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

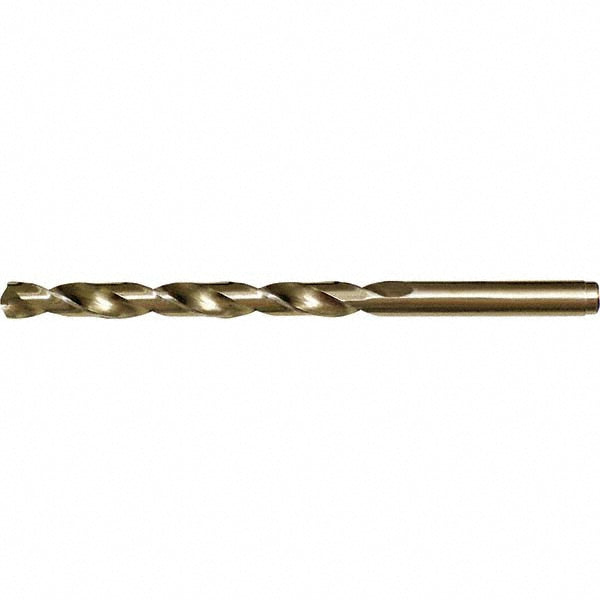

The Cle-Force C68460 is a #60 Cobalt drill bit with a Gold finish, 135° point. Suited for aluminum, superalloy, titanium. 11/16 flute length, 1-5/8 overall length. Series 1603.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit finish coatingGold
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size0.0400
Drill bit size range0.0000 - 0.0500
Drill bit size wire#60
Drill point angle degrees135
Flute length in11/16
Flute typeSpiral
Number of flutes2
Overall length in1-5/8
Point typeSplit
Primary workpiece materialAluminum; Superalloy; Titanium
Shank diameter0.0400
Shank length0.9374
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M
Tool performanceHigh Performance
Web configurationTapered
