Cle-Force

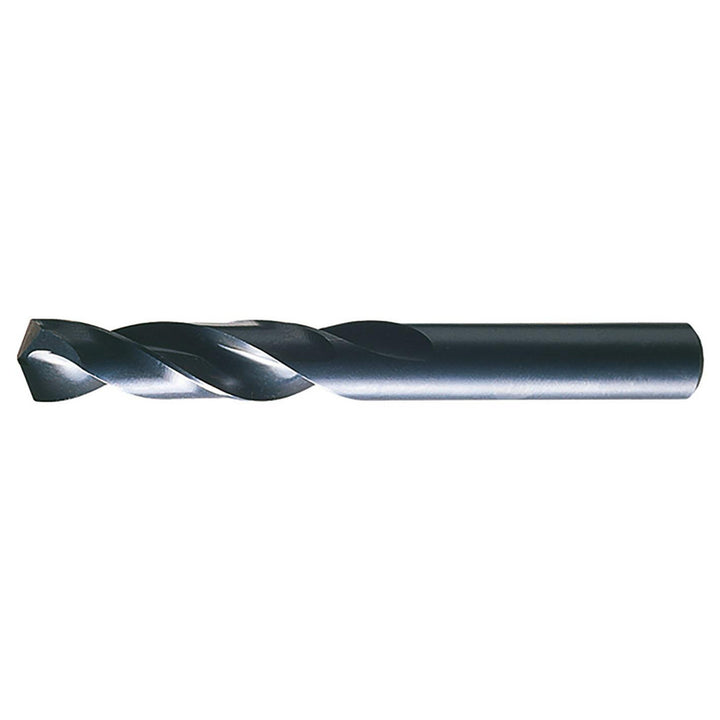

1/8" High-Speed Steel Screw Machine Drill Bit, Coated, 135° point - Cle-Force C68495
MFR# C68495Series 1621
$1.31List $1.68
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/8
Flutes2
CoatingCoated
Description
The Cle-Force C68495 is a 1/8" High-Speed Steel Screw Machine drill bit with a Coated finish, 135° point. Suited for cast iron, steel. 7/8 flute length, 1-7/8 overall length. Series 1621.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit gradeHeavy Duty
Drill bit size in1/8
Drill bit size range0.1000 to 0.1500
Drill length typeScrew Machine
Drill point angle135
Flute length in7/8
Flute typeSpiral
Number of flutes2
Overall length in1-7/8
Point typeSplit
Primary workpiece materialCast Iron; Steel
Shank diameter0.1250
Shank length in1
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M
Tool materialHigh-Speed Steel
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
