3/8" HSS Screw Machine Drill Bit, Oxide, 135° point - Cle-Force C68511

Cle-Force

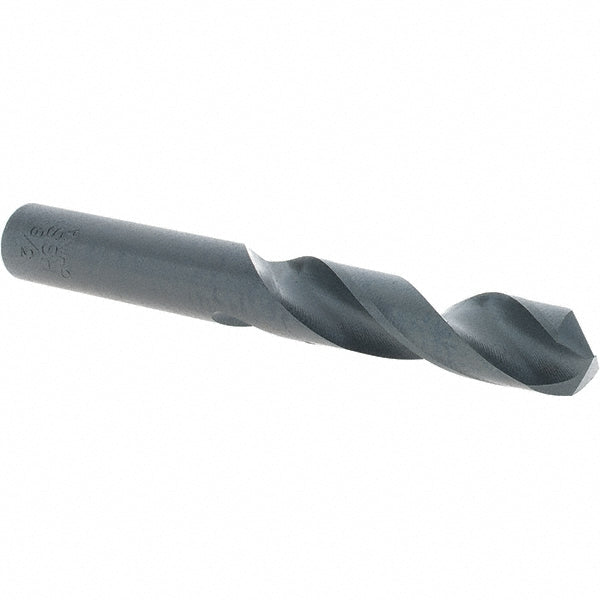

3/8" HSS Screw Machine Drill Bit, Oxide, 135° point - Cle-Force C68511

MFR# C68511Series 1621

$4.19List $5.37 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size3/8
Flutes2
CoatingOxide

Description

The Cle-Force C68511 is a 3/8" HSS Screw Machine drill bit with a Oxide finish, 135° point. Suited for steel, cast iron. 1-13/16 flute length, 3-1/8 overall length. Series 1621.

Specifications

Coating finishOxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeHeavy Duty
Drill bit size in3/8
Drill bit size range0.3500 to 0.4000
Drill length typeScrew Machine
Drill point angle135
Flute length in1-13/16
Flute typeRegular Spiral
Number of flutes2
Overall length in3-1/8
Point typeSplit Point
Primary workpiece materialSteel; Cast Iron
Shank diameter0.3750
Shank length in1-5/16
Shank typeStraight
Spiral typeRegular
StandardsASME B94.11M
Tool materialHSS
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
