Cle-Force

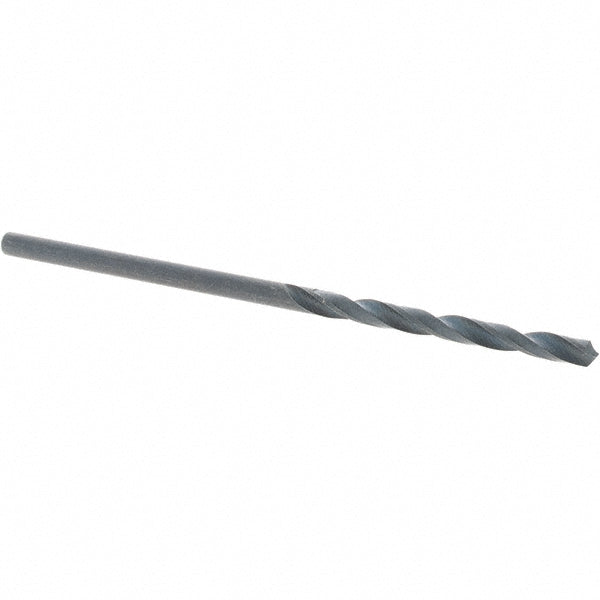

0.0787" High Speed Steel Drill Bit, Oxide, 118° point - Cle-Force C68608
MFR# C68608Series 1606
$0.92List $1.18
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Cle-Force C68608 is a 0.0787" High Speed Steel drill bit with a Oxide finish, 118° point. Suited for aluminum. Series 1606.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit finish coatingOxide
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size0.0787
Drill bit size range0.0500 - 0.1000
Drill point angle degrees118
Flute length0.9449
Flute typeSpiral
Number of flutes2
Overall length1.9291
Point typeStandard
Primary workpiece materialAluminum
Shank diameter0.0787
Shank length0.9843
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceGeneral Purpose
Web configurationTapered
