Cle-Force

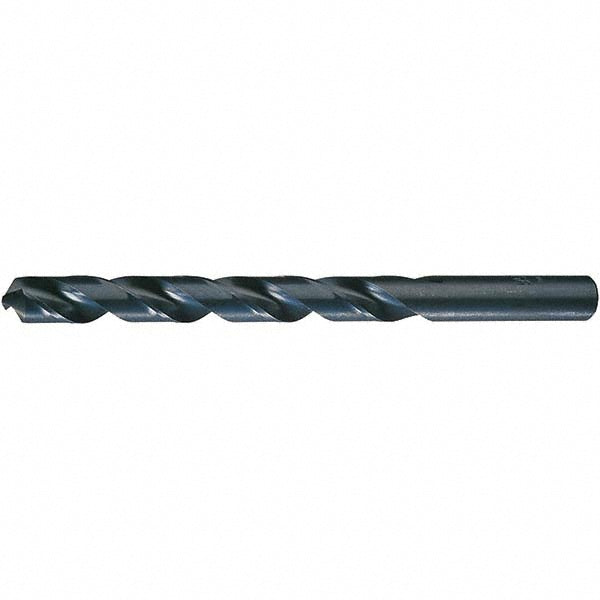

0.3150" High Speed Steel Drill Bit, Oxide, 118° point - Cle-Force C68620
MFR# C68620Series 1606
$3.63List $4.65
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Cle-Force C68620 is a 0.3150" High Speed Steel drill bit with a Oxide finish, 118° point. Suited for aluminum. Series 1606.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit finish coatingOxide
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size0.3150
Drill bit size range0.3000 - 0.3500
Drill point angle degrees118
Flute length2.9528
Flute typeSpiral
Number of flutes2
Overall length4.6063
Point typeStandard
Primary workpiece materialAluminum
Shank diameter0.3150
Shank length1.6535
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
