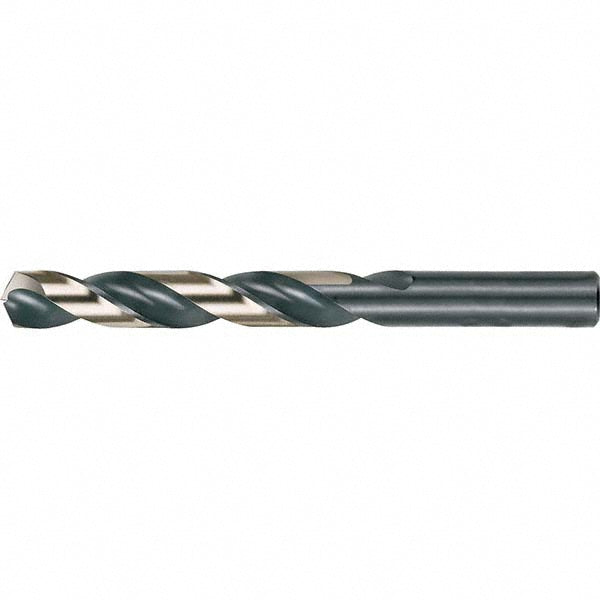

3/16" High Speed Steel Drill Bit, Oxide, 135° point - Cle-Force C69050

Cle-Force

3/16" High Speed Steel Drill Bit, Oxide, 135° point - Cle-Force C69050

MFR# C69050Series 1604

$1.95List $2.51 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size3/16
Flutes2
CoatingOxide

Description

The Cle-Force C69050 is a 3/16" High Speed Steel drill bit with a Oxide finish, 135° point. Suited for cast iron, steel. 2-5/16 flute length, 3-1/2 overall length. Series 1604.

Specifications

Coating finishOxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size in3/16
Drill bit size range0.1500 - 0.2000
Drill point angle degrees135
Flute length in2-5/16
Flute typeSpiral
Number of flutes2
Overall length in3-1/2
Point typeSplit
Primary workpiece materialCast Iron; Steel
Shank diameter in3/16
Shank length1.1874
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
