Cle-Force

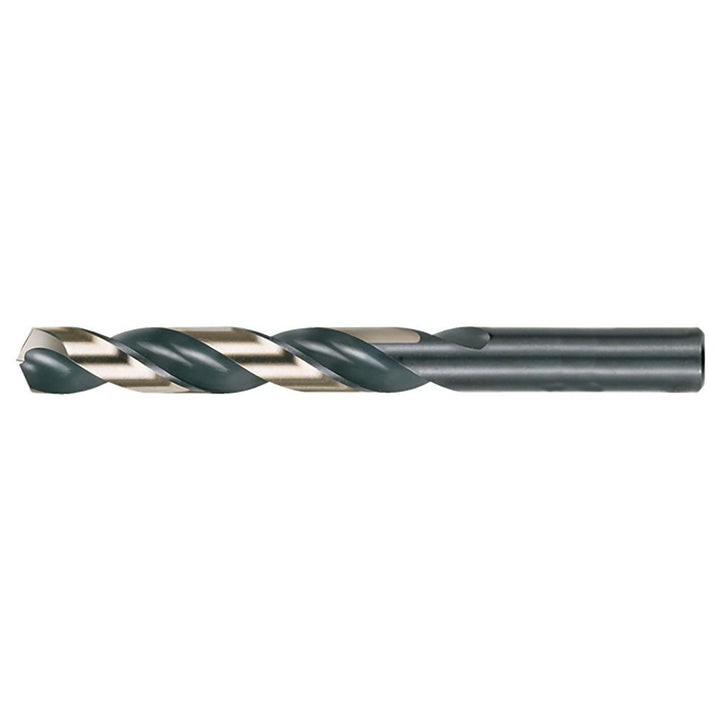

7/16" High Speed Steel Drill Bit, Gold; Oxide, 135° point - Cle-Force C69066
MFR# C69066Series 1604
$7.49List $9.43
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 6 — minimum order 6
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size7/16
Flutes2
Description
The Cle-Force C69066 is a 7/16" High Speed Steel drill bit with a Gold; Oxide finish, 135° point. Suited for cast iron, steel. 4-1/16 flute length, 5-1/2 overall length. Series 1604.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit finish coatingGold; Oxide
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size in7/16
Drill bit size range0.4000 - 0.5000
Drill point angle degrees135
Flute length in4-1/16
Flute typeSpiral
Number of flutes2
Overall length in5-1/2
Point typeSplit
Primary workpiece materialCast Iron; Steel
Shank diameter in7/16
Shank length1.4374
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
