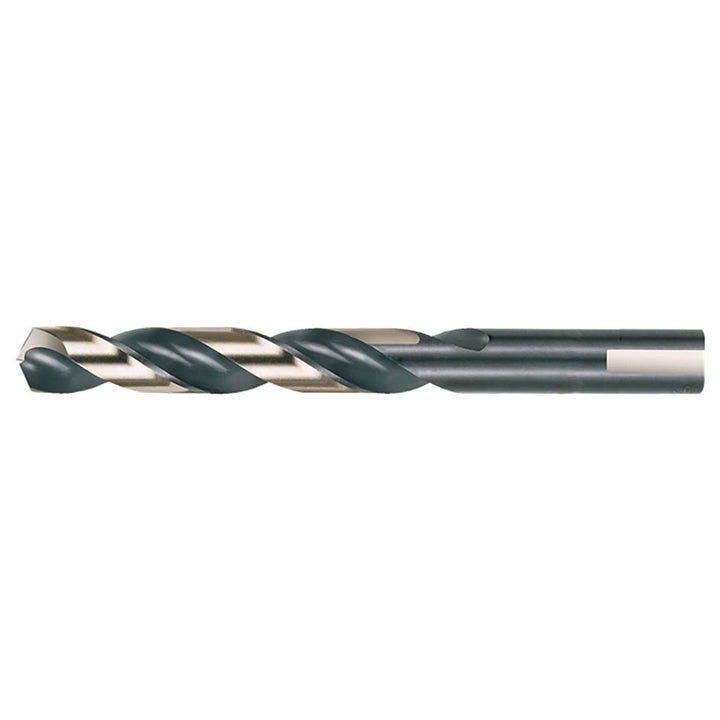

9/64" High Speed Steel Drill Bit, Gold; Oxide, 135° point - Cle-Force C69344

Cle-Force

9/64" High Speed Steel Drill Bit, Gold; Oxide, 135° point - Cle-Force C69344

MFR# C69344Series 1607

$1.92List $2.46 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size9/64
Flutes2

Description

The Cle-Force C69344 is a 9/64" High Speed Steel drill bit with a Gold; Oxide finish, 135° point. Suited for cast iron, steel. 1-3/4 flute length, 2-7/8 overall length. Series 1607.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit finish coatingGold; Oxide
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size in9/64
Drill bit size range0.1000 - 0.1500
Drill point angle degrees135
Flute length in1-3/4
Flute typeSpiral
Number of flats3
Number of flutes2
Overall length in2-7/8
Point typeSplit
Primary workpiece materialCast Iron; Steel
Shank diameter in9/64
Shank length1.1248
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
