13/64" High Speed Steel Drill Bit, Gold; Oxide, 135° point - Cle-Force C69348

Cle-Force

13/64" High Speed Steel Drill Bit, Gold; Oxide, 135° point - Cle-Force C69348

MFR# C69348Series 1607

$2.63List $3.38 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size13/64
Flutes2

Description

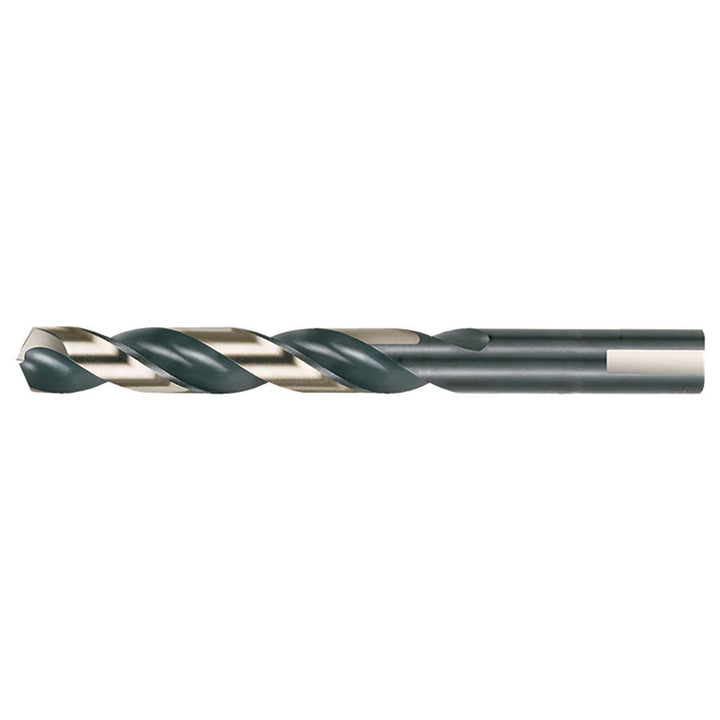

The Cle-Force C69348 is a 13/64" High Speed Steel drill bit with a Gold; Oxide finish, 135° point. Suited for cast iron, steel. 2-7/16 flute length, 3-5/8 overall length. Series 1607.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit finish coatingGold; Oxide
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size in13/64
Drill bit size range0.2000 - 0.2500
Drill point angle degrees135
Flute length in2-7/16
Flute typeSpiral
Number of flats3
Number of flutes2
Overall length in3-5/8
Point typeSplit
Primary workpiece materialCast Iron; Steel
Shank diameter in13/64
Shank length1.1874
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
