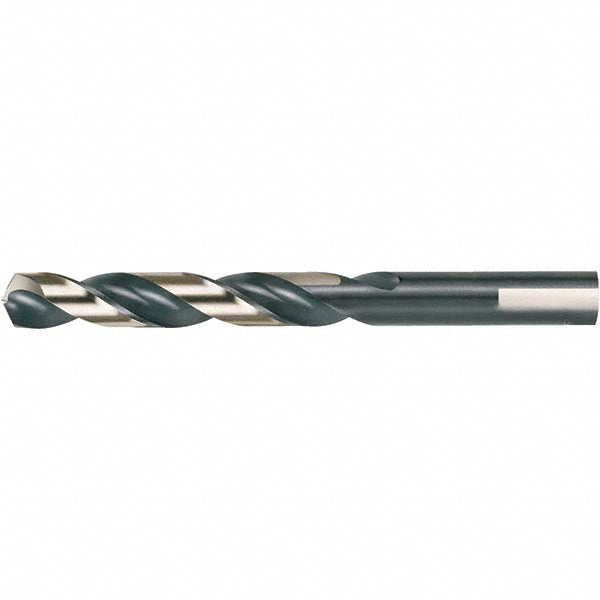

17/64" High Speed Steel Drill Bit, Oxide, 135° point - Cle-Force C69352

Cle-Force

17/64" High Speed Steel Drill Bit, Oxide, 135° point - Cle-Force C69352

MFR# C69352Series 1607

$3.64List $4.66 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size17/64
Flutes2
CoatingOxide

Description

The Cle-Force C69352 is a 17/64" High Speed Steel drill bit with a Oxide finish, 135° point. Suited for cast iron, steel. 2-7/8 flute length, 4-1/8 overall length. Series 1607.

Specifications

Coating finishOxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size in17/64
Drill bit size range0.2500 - 0.3000
Drill point angle degrees135
Flute length in2-7/8
Flute typeSpiral
Number of flats3
Number of flutes2
Overall length in4-1/8
Point typeSplit
Primary workpiece materialCast Iron; Steel
Shank diameter in17/64
Shank length1.2500
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
