27/64" High Speed Steel Drill Bit, Gold; Oxide, 135° point - Cle-Force C69362

Cle-Force

27/64" High Speed Steel Drill Bit, Gold; Oxide, 135° point - Cle-Force C69362

MFR# C69362Series 1607

$8.54List $10.96 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size27/64
Flutes2

Description

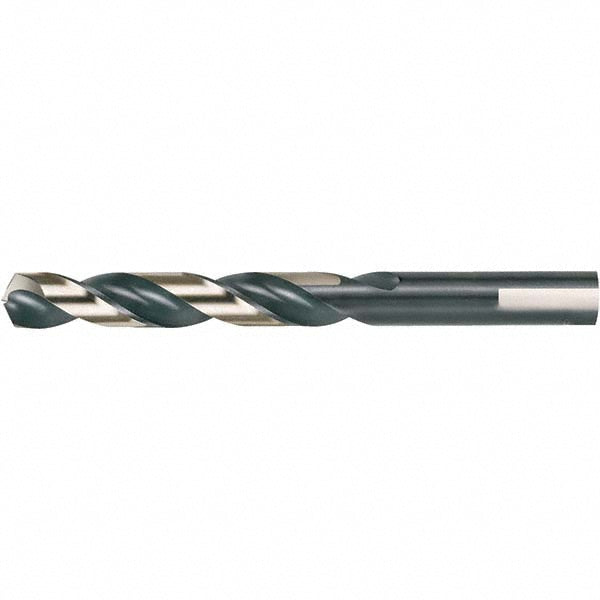

The Cle-Force C69362 is a 27/64" High Speed Steel drill bit with a Gold; Oxide finish, 135° point. Suited for cast iron, steel. 3-15/16 flute length, 5-3/8 overall length. Series 1607.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit finish coatingGold; Oxide
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size in27/64
Drill bit size range0.4000 - 0.5000
Drill point angle degrees135
Flute length in3-15/16
Flute typeSpiral
Number of flats3
Number of flutes2
Overall length in5-3/8
Point typeSplit
Primary workpiece materialCast Iron; Steel
Shank diameter in27/64
Shank length1.4378
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
