Cle-Line

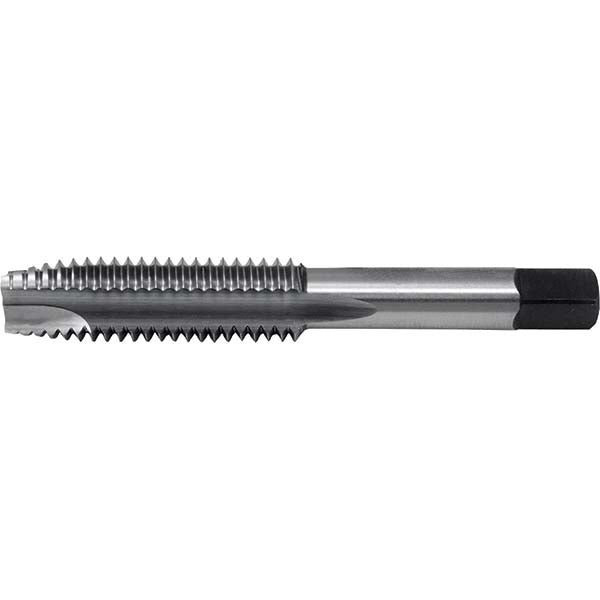

1/4-20 UNC High-Speed Steel Tap - Cle-Line C00790
MFR# C00790Series 0411
$11.11List $14.24
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-20
Description
The Cle-Line C00790 is a 1/4-20 UNC High-Speed Steel tap. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAlloy Steel; Carbon Steel
Material gradeM2
Number of flutes3
Overall length in2-1/2
OversizeNo
Shank diameter0.2600
Square size (mm)7.94
Threads per inch20
Thread directionRight Hand
Thread length1.0000
Thread limitH3
Thread size in1/4-20
Thread standardUNC
