7/64" HSS Drill Bit, Black/Gold, 135° point - Cle-Line C18003

Cle-Line

7/64" HSS Drill Bit, Black/Gold, 135° point - Cle-Line C18003

MFR# C18003Series 1878

$1.77List $2.28 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size7/64
Flutes2
CoatingBlack/Gold

Description

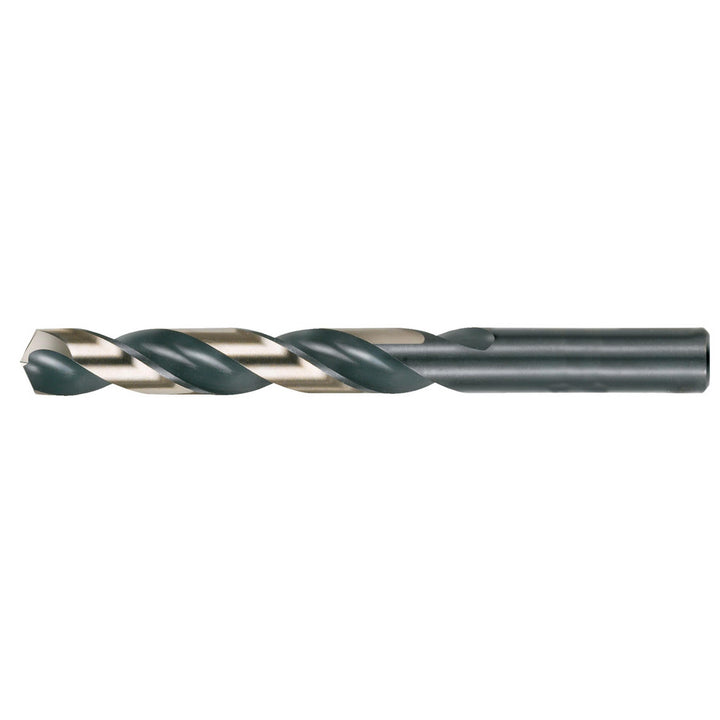

The Cle-Line C18003 is a 7/64" HSS drill bit with a Black/Gold finish, 135° point. Suited for steel, cast iron. 1-1/2 flute length, 2-5/8 overall length. Series 1878.

Specifications

Coating finishBlack/Gold
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit gradeHeavy Duty
Drill bit materialHSS
Drill bit size in7/64
Drill bit size range0.1000 - 0.1500
Drill point angle degrees135
Flute length in1-1/2
Flute typeRegular Spiral
Number of flutes2
Overall length in2-5/8
Point typeSplit Point
Primary workpiece materialSteel; Cast Iron
Shank diameter in7/64
Shank length1.1248
Shank typeStraight
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
