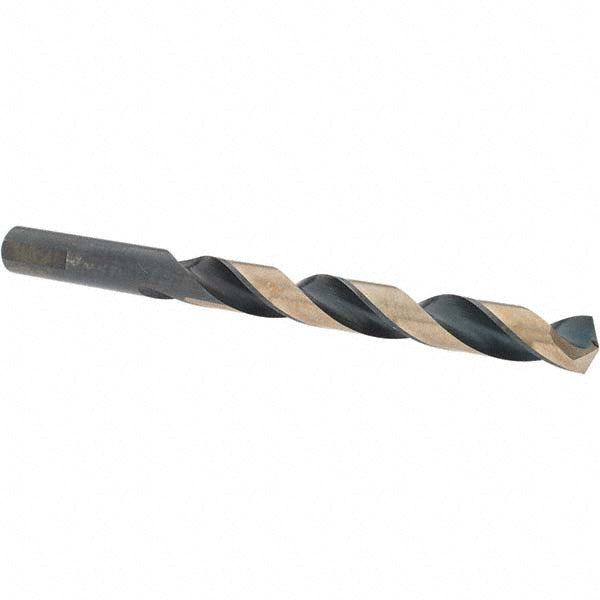

7/16" HSS Drill Bit, Black/Gold, 135° point - Cle-Line C18024

Cle-Line

7/16" HSS Drill Bit, Black/Gold, 135° point - Cle-Line C18024

MFR# C18024Series 1878

$8.98List $11.52 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size7/16
Flutes2
CoatingBlack/Gold

Description

The Cle-Line C18024 is a 7/16" HSS drill bit with a Black/Gold finish, 135° point. Suited for steel, cast iron. 4-1/16 flute length, 5-1/2 overall length. Series 1878.

Specifications

Coating finishBlack/Gold
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeHeavy Duty
Drill bit materialHSS
Drill bit size in7/16
Drill bit size range0.4000 - 0.5000
Drill point angle degrees135
Flute length in4-1/16
Flute typeRegular Spiral
Number of flats3
Number of flutes2
Overall length in5-1/2
Point typeSplit Point
Primary workpiece materialSteel; Cast Iron
Shank diameter in7/16
Shank length1.4374
Shank typeStraight
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
