Cle-Line

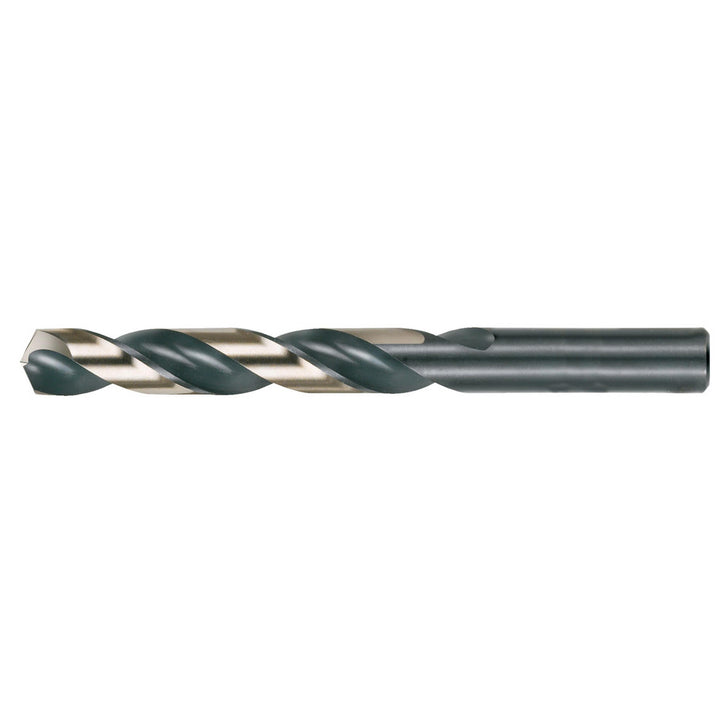

15/32" High Speed Steel Drill Bit, Oxide/Gold, 135° point - Cle-Line C18026
MFR# C18026
$10.37List $13.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size15/32
Description
The Cle-Line C18026 is a 15/32" High Speed Steel drill bit with a Oxide/Gold finish, 135° point. 4-5/16 flute length, 5-3/4 overall length.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit finish coatingOxide/Gold
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size in15/32
Drill bit size range0.4000 - 0.5000
Drill point angle degrees135
Flute length in4-5/16
Flute typeSpiral
Overall length in5-3/4
Point typeSplit
Shank diameter in15/32
Shank length1.4374
Shank typeStraight-Cylindrical
Spiral typeRegular
Web configurationTapered
Web thinningWeb-Thinned
