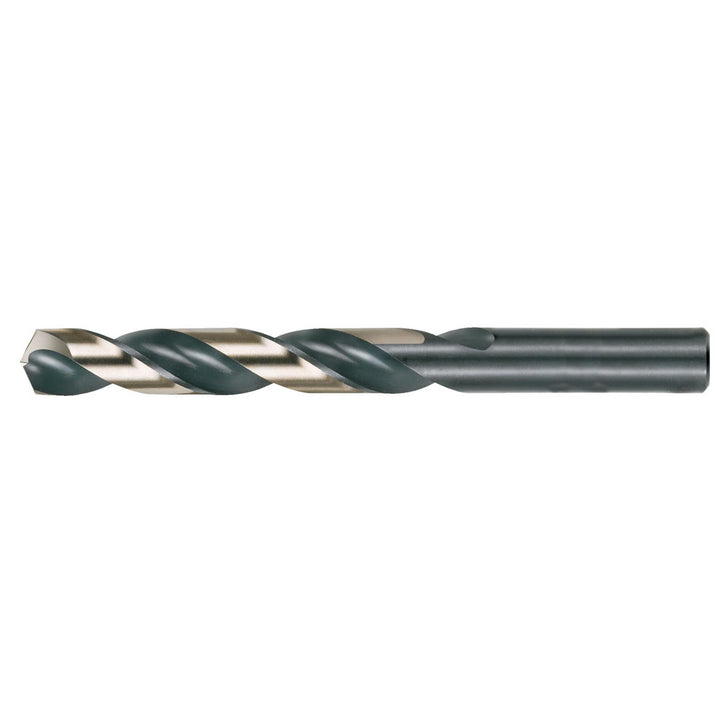

31/64" HSS Drill Bit, Black/Gold, 135° point - Cle-Line C18027

Cle-Line

31/64" HSS Drill Bit, Black/Gold, 135° point - Cle-Line C18027

MFR# C18027

$11.30List $14.49 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size31/64
CoatingBlack/Gold

Description

The Cle-Line C18027 is a 31/64" HSS drill bit with a Black/Gold finish, 135° point. Suited for steel, cast iron. 4-3/8 flute length, 5-7/8 overall length.

Specifications

Coating finishBlack/Gold
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeHeavy Duty
Drill bit materialHSS
Drill bit size in31/64
Drill bit size range0.4000 - 0.5000
Drill point angle degrees135
Flute length in4-3/8
Flute typeRegular Spiral
Overall length in5-7/8
Point typeSplit Point
Primary workpiece materialSteel; Cast Iron
Shank diameter in31/64
Shank length1.4996
Shank typeStraight
Spiral typeRegular
Web configurationTapered
Web thinningWeb-Thinned
