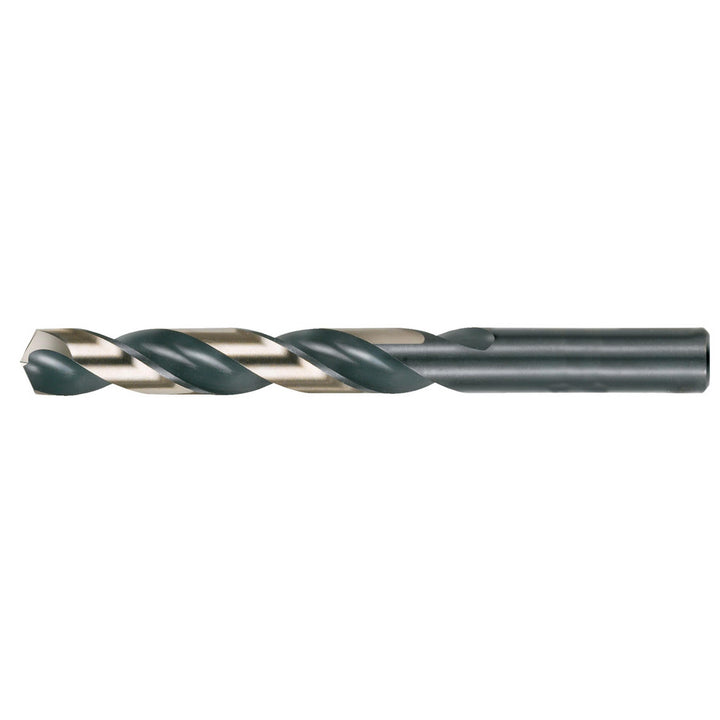

Letter K HSS Drill Bit, Black/Gold, 135° point - Cle-Line C18038

Cle-Line

Letter K HSS Drill Bit, Black/Gold, 135° point - Cle-Line C18038

MFR# C18038Series 1878

$4.36List $5.59 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingBlack/Gold

Description

The Cle-Line C18038 is a Letter K HSS drill bit with a Black/Gold finish, 135° point. Suited for steel, cast iron. 2-15/16 flute length, 4-1/4 overall length. Series 1878.

Specifications

Coating finishBlack/Gold
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeHeavy Duty
Drill bit materialHSS
Drill bit size0.2810
Drill bit size letterK
Drill bit size range0.2500 - 0.3000
Drill point angle degrees135
Flute length in2-15/16
Flute typeRegular Spiral
Number of flats3
Number of flutes2
Overall length in4-1/4
Point typeSplit Point
Primary workpiece materialSteel; Cast Iron
Shank diameter0.2810
Shank length1.3126
Shank typeStraight
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
