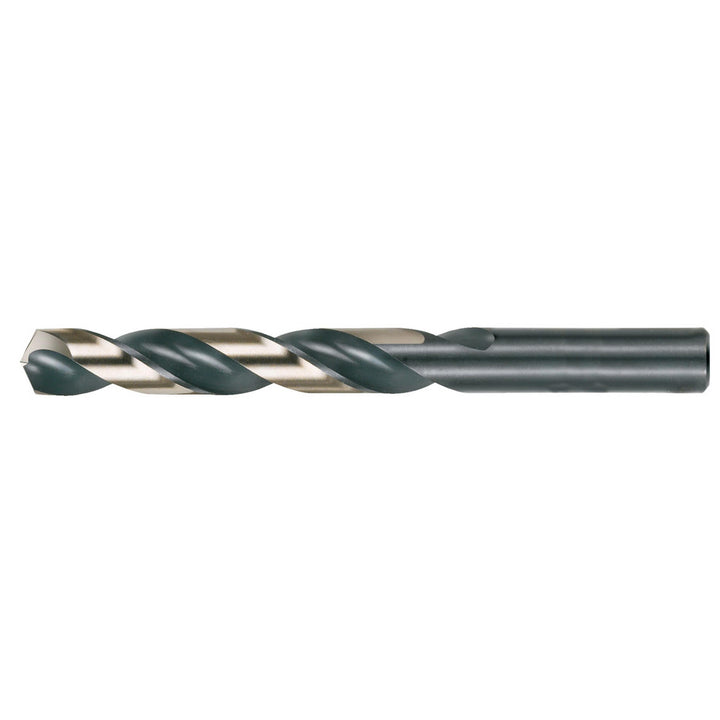

Letter U HSS Drill Bit, Black/Gold, 135° point - Cle-Line C18048

Cle-Line

Letter U HSS Drill Bit, Black/Gold, 135° point - Cle-Line C18048

MFR# C18048Series 1878

$7.05List $9.04 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingBlack/Gold

Description

The Cle-Line C18048 is a Letter U HSS drill bit with a Black/Gold finish, 135° point. Suited for steel, cast iron. 3-5/8 flute length, 5 overall length. Series 1878.

Specifications

Coating finishBlack/Gold
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeHeavy Duty
Drill bit materialHSS
Drill bit size0.3680
Drill bit size letterU
Drill bit size range0.3500 - 0.4000
Drill point angle degrees135
Flute length in3-5/8
Flute typeRegular Spiral
Number of flats3
Number of flutes2
Overall length in5
Point typeSplit Point
Primary workpiece materialSteel; Cast Iron
Shank diameter0.3680
Shank length1.3752
Shank typeStraight
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
