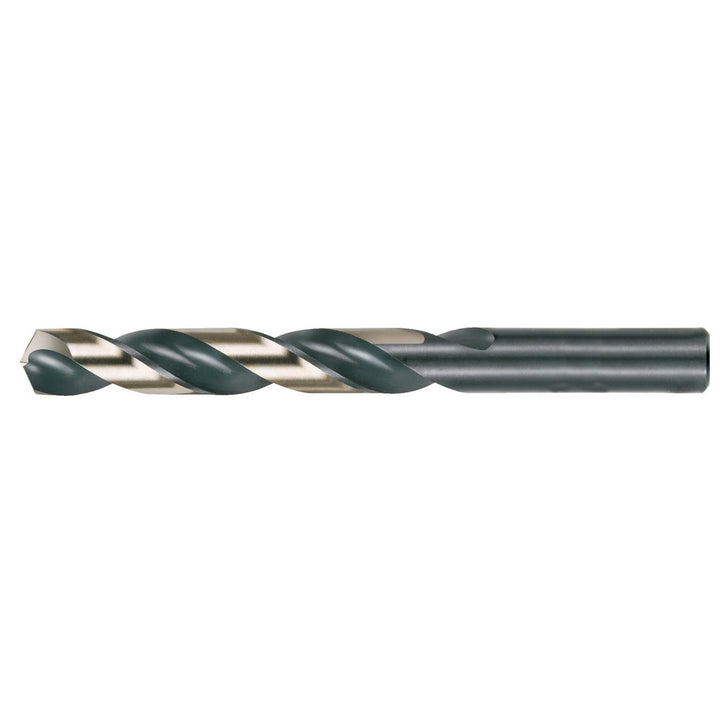

Letter W HSS Drill Bit, Black/Gold, 135° point - Cle-Line C18050

Cle-Line

Letter W HSS Drill Bit, Black/Gold, 135° point - Cle-Line C18050

MFR# C18050Series 1878

$7.79List $9.98 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingBlack/Gold

Description

The Cle-Line C18050 is a Letter W HSS drill bit with a Black/Gold finish, 135° point. Suited for steel, cast iron. 3-3/4 flute length, 5-1/8 overall length. Series 1878.

Specifications

Coating finishBlack/Gold
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeHeavy Duty
Drill bit materialHSS
Drill bit size0.3860
Drill bit size letterW
Drill bit size range0.3500 - 0.4000
Drill point angle degrees135
Flute length in3-3/4
Flute typeRegular Spiral
Number of flats3
Number of flutes2
Overall length in5-1/8
Point typeSplit Point
Primary workpiece materialSteel; Cast Iron
Shank diameter0.3860
Shank length1.3748
Shank typeStraight
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
