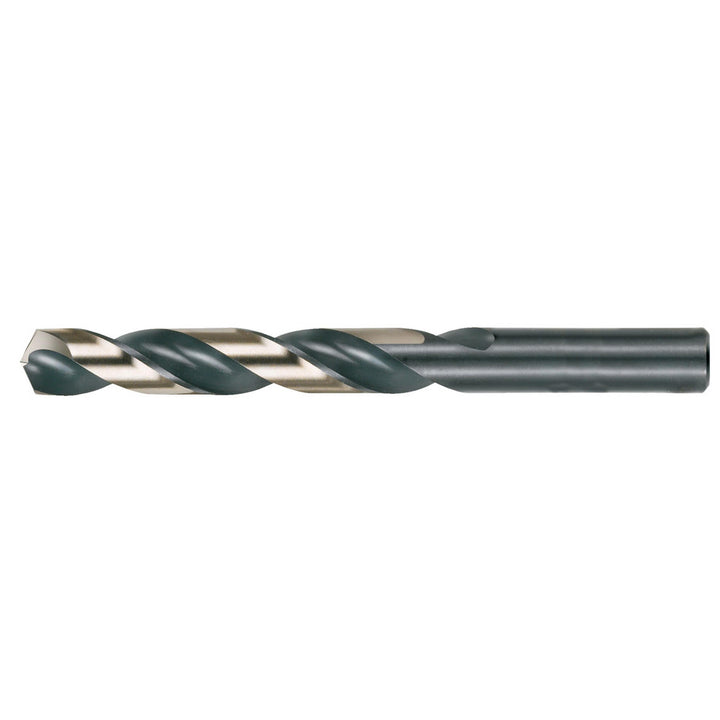

#1 High Speed Steel Drill Bit, Gold; Oxide, 135° point - Cle-Line C18054

Cle-Line

#1 High Speed Steel Drill Bit, Gold; Oxide, 135° point - Cle-Line C18054

MFR# C18054Series 1878

$3.13List $4.02 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

The Cle-Line C18054 is a #1 High Speed Steel drill bit with a Gold; Oxide finish, 135° point. Suited for cast iron, steel. 2-5/8 flute length, 3-7/8 overall length. Series 1878.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit finish coatingGold; Oxide
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size0.2280
Drill bit size range0.2000 - 0.2500
Drill bit size wire#1
Drill point angle degrees135
Flute length in2-5/8
Flute typeSpiral
Number of flats3
Number of flutes2
Overall length in3-7/8
Point typeSplit
Primary workpiece materialCast Iron; Steel
Shank diameter0.2280
Shank length1.2500
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
