#8 HSS Drill Bit, Black/Gold, 135° point - Cle-Line C18061

Cle-Line

#8 HSS Drill Bit, Black/Gold, 135° point - Cle-Line C18061

MFR# C18061

$3.05List $3.91 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
CoatingBlack/Gold

Description

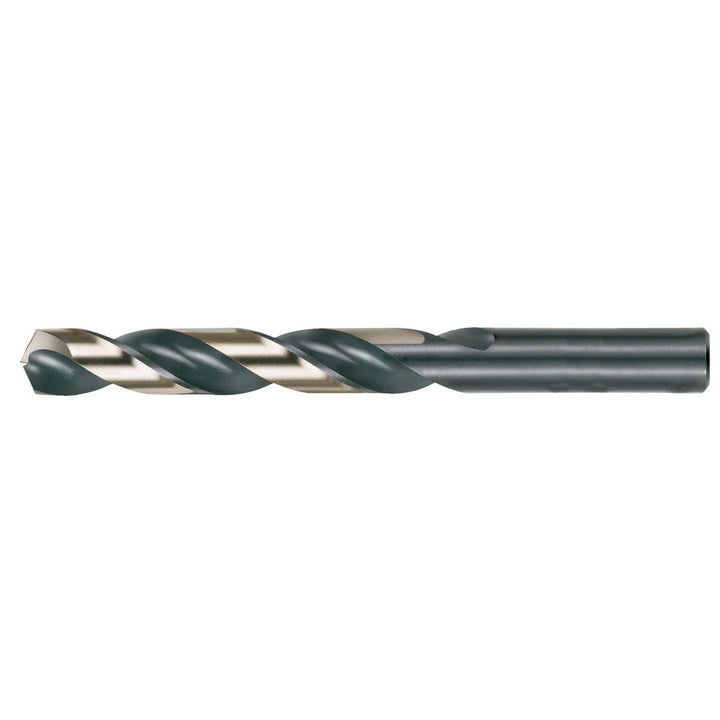

The Cle-Line C18061 is a #8 HSS drill bit with a Black/Gold finish, 135° point. Suited for steel, cast iron. 2-7/16 flute length, 3-5/8 overall length.

Specifications

Coating finishBlack/Gold
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit gradeHeavy Duty
Drill bit materialHSS
Drill bit size0.1990
Drill bit size range0.1500 - 0.2000
Drill bit size wire#8
Drill point angle degrees135
Flute length in2-7/16
Flute typeRegular Spiral
Overall length in3-5/8
Point typeSplit Point
Primary workpiece materialSteel; Cast Iron
Shank diameter0.1990
Shank length1.1874
Shank typeStraight
Spiral typeRegular
Web configurationTapered
Web thinningWeb-Thinned
