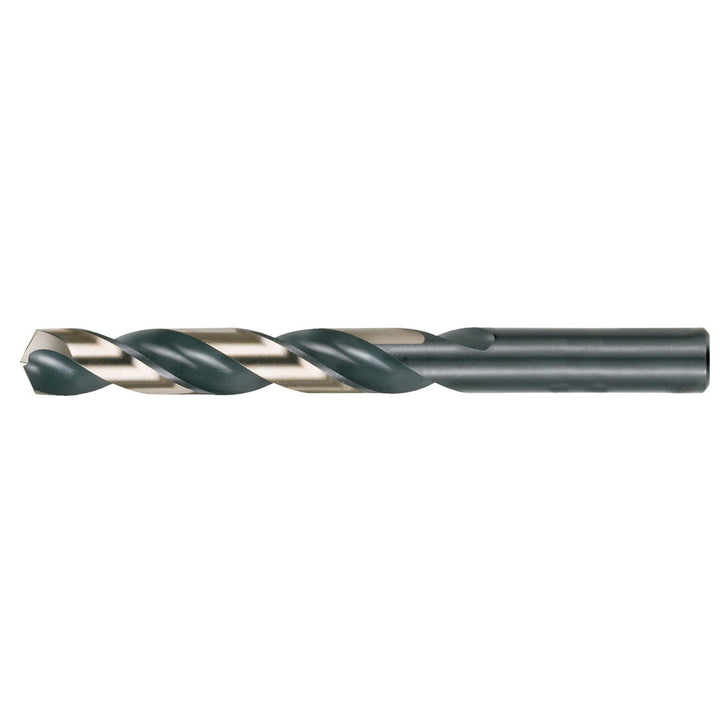

#16 HSS Drill Bit, Black/Gold, 135° point - Cle-Line C18069

Cle-Line

#16 HSS Drill Bit, Black/Gold, 135° point - Cle-Line C18069

MFR# C18069Series 1878

$2.69List $3.45 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingBlack/Gold

Description

The Cle-Line C18069 is a #16 HSS drill bit with a Black/Gold finish, 135° point. Suited for steel, cast iron. 2-3/16 flute length, 3-3/8 overall length. Series 1878.

Specifications

Coating finishBlack/Gold
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit gradeHeavy Duty
Drill bit materialHSS
Drill bit size0.1770
Drill bit size range0.1500 - 0.2000
Drill bit size wire#16
Drill point angle degrees135
Flute length in2-3/16
Flute typeRegular Spiral
Number of flutes2
Overall length in3-3/8
Point typeSplit Point
Primary workpiece materialSteel; Cast Iron
Shank diameter0.1770
Shank length1.1874
Shank typeStraight
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
