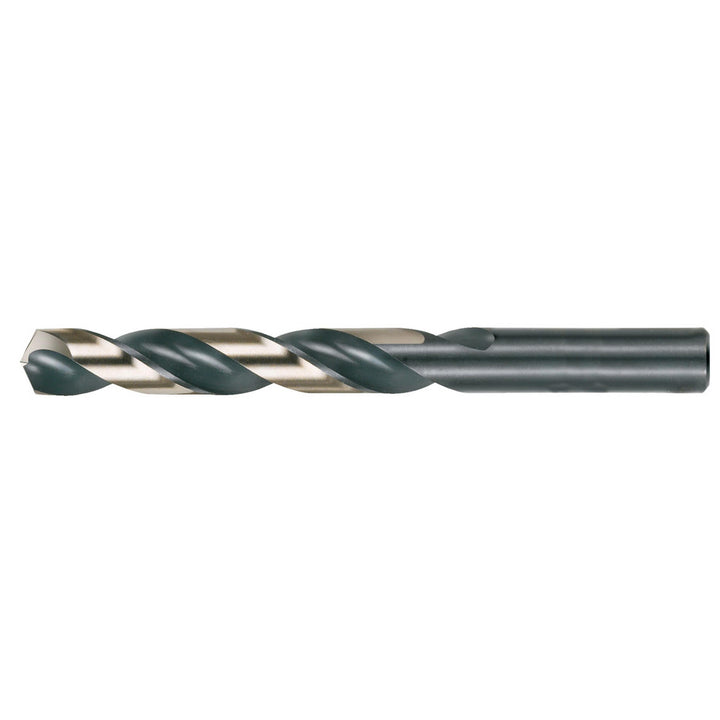

#46 HSS Drill Bit, Black/Gold, 135° point - Cle-Line C18099

Cle-Line

#46 HSS Drill Bit, Black/Gold, 135° point - Cle-Line C18099

MFR# C18099

$2.14List $2.74 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
CoatingBlack/Gold

Description

The Cle-Line C18099 is a #46 HSS drill bit with a Black/Gold finish, 135° point. Suited for steel, cast iron. 1-1/8 flute length, 2-1/8 overall length.

Specifications

Coating finishBlack/Gold
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit gradeHeavy Duty
Drill bit materialHSS
Drill bit size0.0810
Drill bit size range0.0500 - 0.1000
Drill bit size wire#46
Drill point angle degrees135
Flute length in1-1/8
Flute typeRegular Spiral
Overall length in2-1/8
Point typeSplit Point
Primary workpiece materialSteel; Cast Iron
Shank diameter0.0810
Shank length1.0000
Shank typeStraight
Spiral typeRegular
Web configurationTapered
