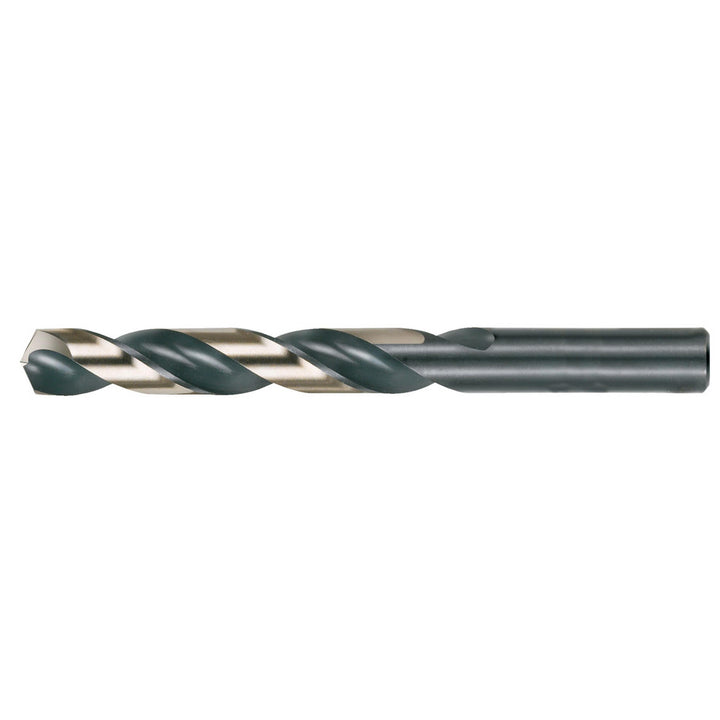

#54 HSS Drill Bit, Black/Gold, 135° point - Cle-Line C18107

Cle-Line

#54 HSS Drill Bit, Black/Gold, 135° point - Cle-Line C18107

MFR# C18107Series 1878

$1.58List $2.03 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingBlack/Gold

Description

The Cle-Line C18107 is a #54 HSS drill bit with a Black/Gold finish, 135° point. Suited for steel, cast iron. 7/8 flute length, 1-7/8 overall length. Series 1878.

Specifications

Coating finishBlack/Gold
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit gradeHeavy Duty
Drill bit materialHSS
Drill bit size0.0550
Drill bit size range0.0500 - 0.1000
Drill bit size wire#54
Drill point angle degrees135
Flute length in7/8
Flute typeRegular Spiral
Number of flutes2
Overall length in1-7/8
Point typeSplit Point
Primary workpiece materialSteel; Cast Iron
Shank diameter0.0550
Shank length1.0004
Shank typeStraight
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceHigh Performance
Web configurationTapered
