Cle-Line

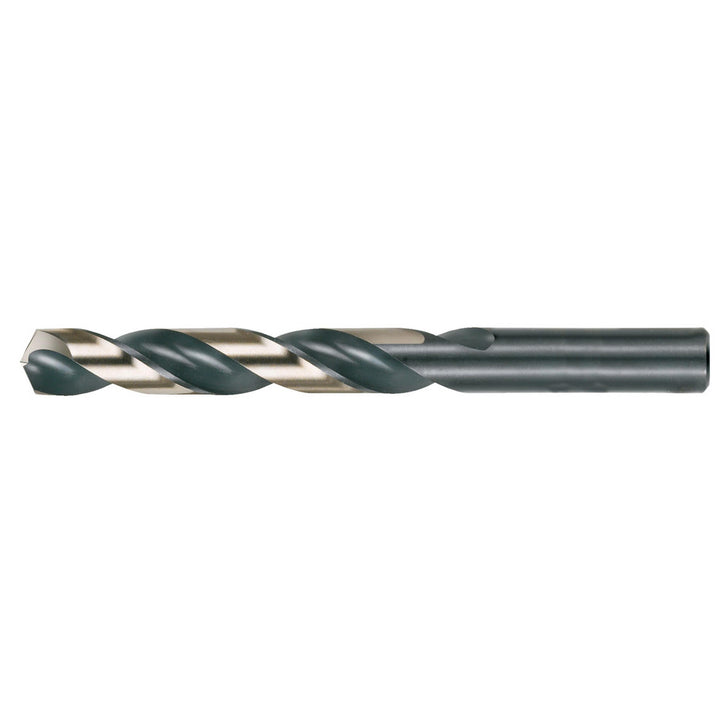

#56 HSS Drill Bit, Black/Gold, 135° point - Cle-Line C18109
MFR# C18109
$1.58List $2.03
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingBlack/Gold
Description
The Cle-Line C18109 is a #56 HSS drill bit with a Black/Gold finish, 135° point. Suited for steel, cast iron. 3/4 flute length, 1-3/4 overall length.
Specifications
Coating finishBlack/Gold
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit gradeHeavy Duty
Drill bit materialHSS
Drill bit size0.0465
Drill bit size range0.0000 - 0.0500
Drill bit size wire#56
Drill point angle degrees135
Flute length in3/4
Flute typeRegular Spiral
Overall length in1-3/4
Point typeSplit Point
Primary workpiece materialSteel; Cast Iron
Shank diameter0.0465
Shank length1.0000
Shank typeStraight
Spiral typeRegular
Web configurationTapered
