Cle-Line

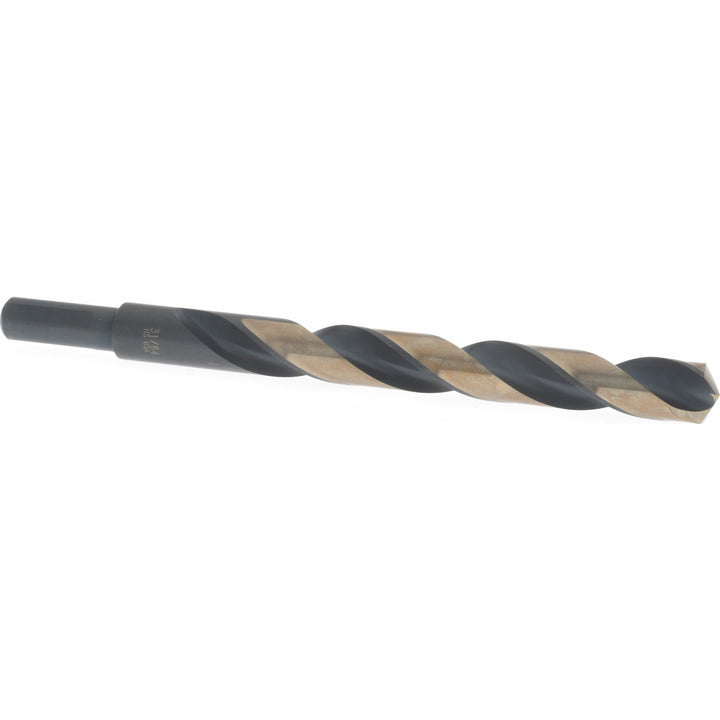

31/64" High-Speed Steel Reduced Shank Drill Bit, Gold, 135° point - Cle-Line C18120
MFR# C18120Series 1879
$10.72List $13.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size31/64
Flutes2
CoatingGold
Description
The Cle-Line C18120 is a 31/64" High-Speed Steel Reduced Shank drill bit with a Gold finish, 135° point. 5-7/8 overall length. Series 1879.
Specifications
Coating finishGold
CoolantNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit size in31/64
Drill length typeReduced Shank
Drill point angle135
Flute length (mm)111.13
Flute typeSpiral
Maximum drilling depth (mm)111.13
Number of flutes2
Overall length in5-7/8
Point typeSplit
Shank diameter in3/8
Shank length1.4996
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialHigh-Speed Steel
