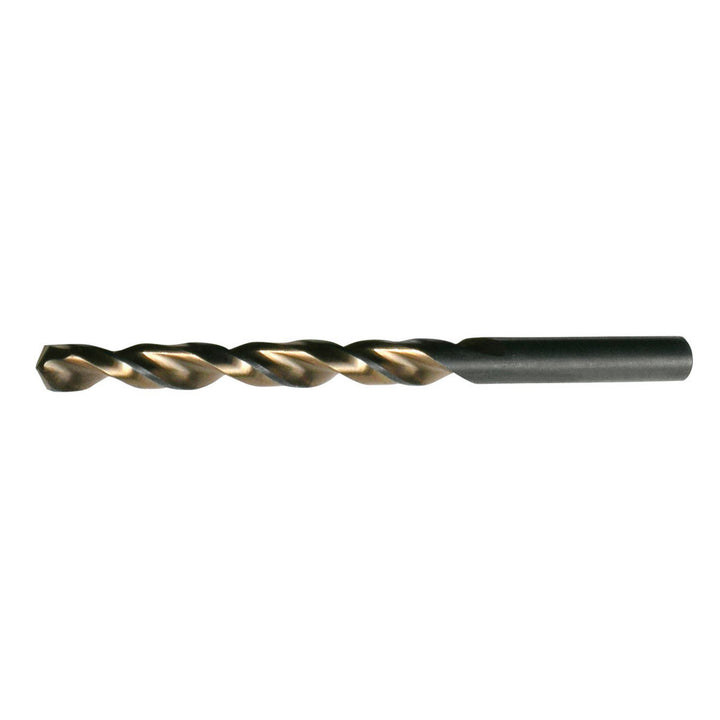

7/64" High Speed Steel Drill Bit, Gold; Oxide, 135° point - Cle-Line C18433

Cle-Line

7/64" High Speed Steel Drill Bit, Gold; Oxide, 135° point - Cle-Line C18433

MFR# C18433Series 1872

$1.76List $2.26 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size7/64
Flutes2

Description

The Cle-Line C18433 is a 7/64" High Speed Steel drill bit with a Gold; Oxide finish, 135° point. Suited for aluminum. 1-1/2 flute length, 2-5/8 overall length. Series 1872.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit finish coatingGold; Oxide
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size in7/64
Drill bit size range0.1000 - 0.1500
Drill point angle degrees135
Flute length in1-1/2
Flute typeParabolic
Number of flutes2
Overall length in2-5/8
Point typeSplit
Primary workpiece materialAluminum
Shank diameter in7/64
Shank length1.1248
Shank typeStraight-Cylindrical
StandardsASME B94.11M; DIN 338
Web configurationTapered
Web thinningWeb-Thinned
