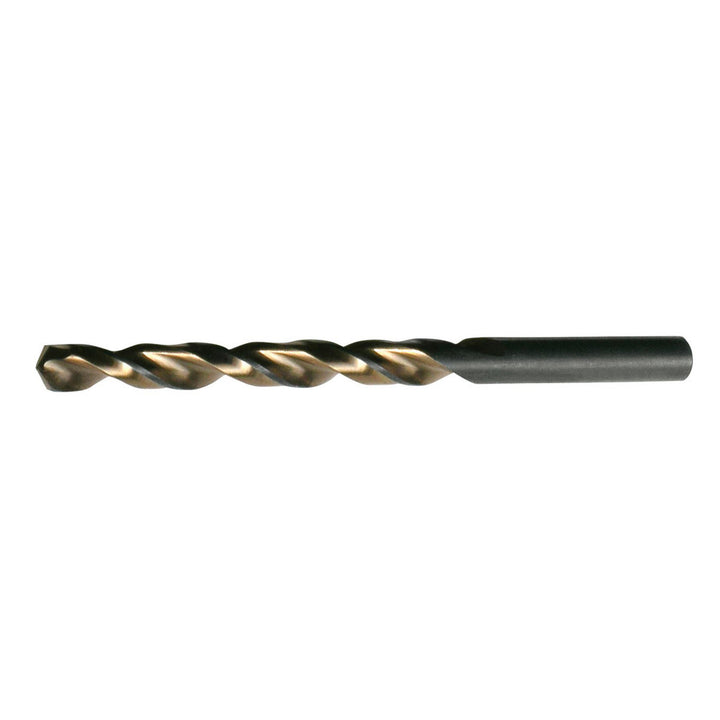

3/16" HSS Drill Bit, Black/Gold, 135° point - Cle-Line C18438

Cle-Line

3/16" HSS Drill Bit, Black/Gold, 135° point - Cle-Line C18438

MFR# C18438Series 1872

$2.23List $2.86 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size3/16
Flutes2
CoatingBlack/Gold

Description

The Cle-Line C18438 is a 3/16" HSS drill bit with a Black/Gold finish, 135° point. Suited for steel, cast iron. 2-5/16 flute length, 3-1/2 overall length. Series 1872.

Specifications

Coating finishBlack/Gold
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit gradeGeneral Purpose
Drill bit materialHSS
Drill bit size in3/16
Drill bit size range0.1500 - 0.2000
Drill point angle degrees135
Flute length in2-5/16
Flute typeParabolic
Number of flutes2
Overall length in3-1/2
Point typeSplit Point
Primary workpiece materialSteel; Cast Iron
Shank diameter in3/16
Shank length1.1874
Shank typeStraight
StandardsASME B94.11M; DIN 338
Web configurationTapered
Web thinningWeb-Thinned
