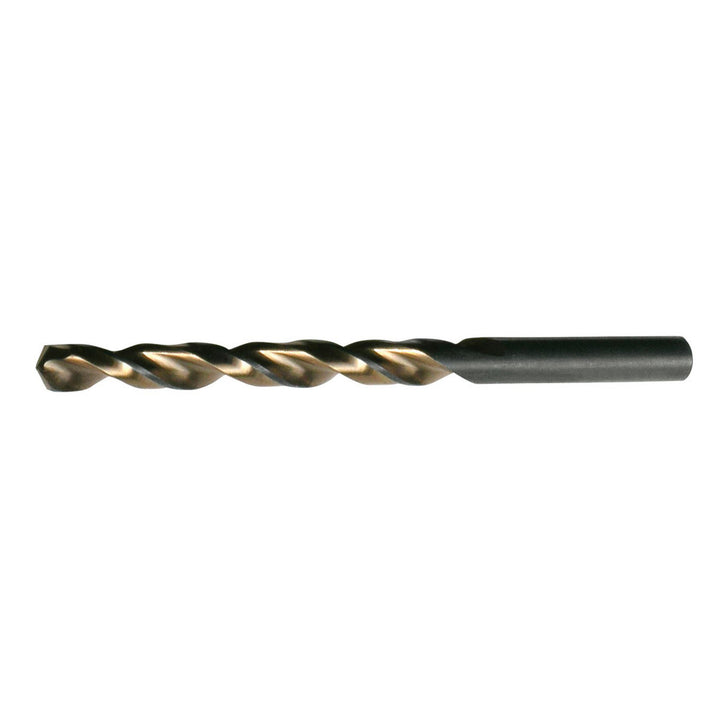

1/4" High Speed Steel Drill Bit, Oxide, 135° point - Cle-Line C18442

Cle-Line

1/4" High Speed Steel Drill Bit, Oxide, 135° point - Cle-Line C18442

MFR# C18442Series 1872

$3.42List $4.39 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size1/4
Flutes2
CoatingOxide

Description

The Cle-Line C18442 is a 1/4" High Speed Steel drill bit with a Oxide finish, 135° point. Suited for aluminum. 2-3/4 flute length, 4 overall length. Series 1872.

Specifications

Coating finishOxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size in1/4
Drill bit size letterE
Drill bit size range0.2500 - 0.3000
Drill point angle degrees135
Flute length in2-3/4
Flute typeParabolic
Number of flutes2
Overall length in4
Point typeSplit
Primary workpiece materialAluminum
Shank diameter in1/4
Shank length1.2500
Shank typeStraight-Cylindrical
StandardsASME B94.11M; DIN 338
Web configurationTapered
Web thinningWeb-Thinned
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
