Cle-Line

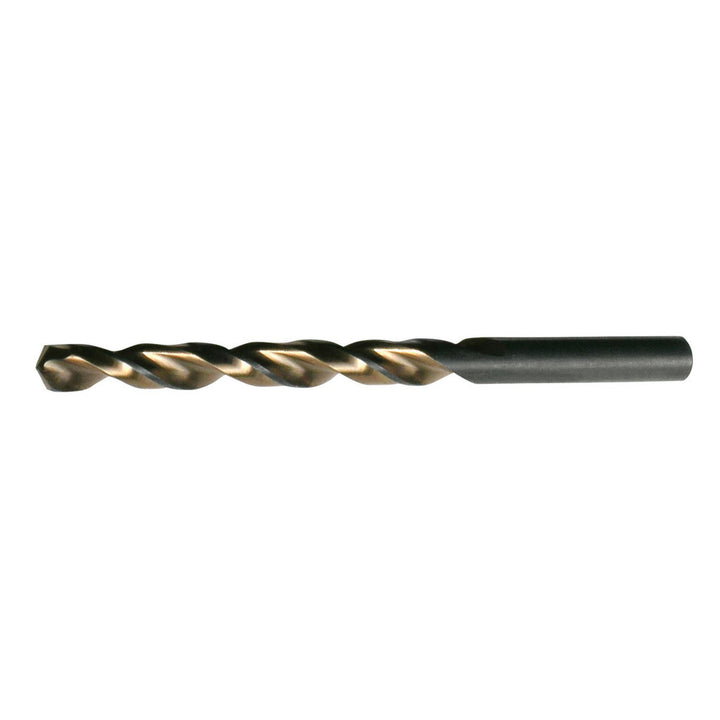

0.4409" High Speed Steel Drill Bit, Oxide/Gold, 135° point - Cle-Line C18614
MFR# C18614
$12.44List $15.96
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Cle-Line C18614 is a 0.4409" High Speed Steel drill bit with a Oxide/Gold finish, 135° point.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit finish coatingOxide/Gold
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size0.4409
Drill bit size range0.4000 - 0.5000
Drill point angle degrees135
Flute length3.7008
Flute typeParabolic
Overall length5.5905
Point typeSplit
Shank diameter0.4409
Shank length1.8898
Shank typeStraight-Cylindrical
Web configurationTapered
Web thinningWeb-Thinned
