Cle-Line
5/16" HSS Drill Bit, TiN, 118° point - Cle-Line C19176
MFR# C19176Series 1898TN
$9.20List $11.79
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size5/16
Flutes2
CoatingTiN
Description

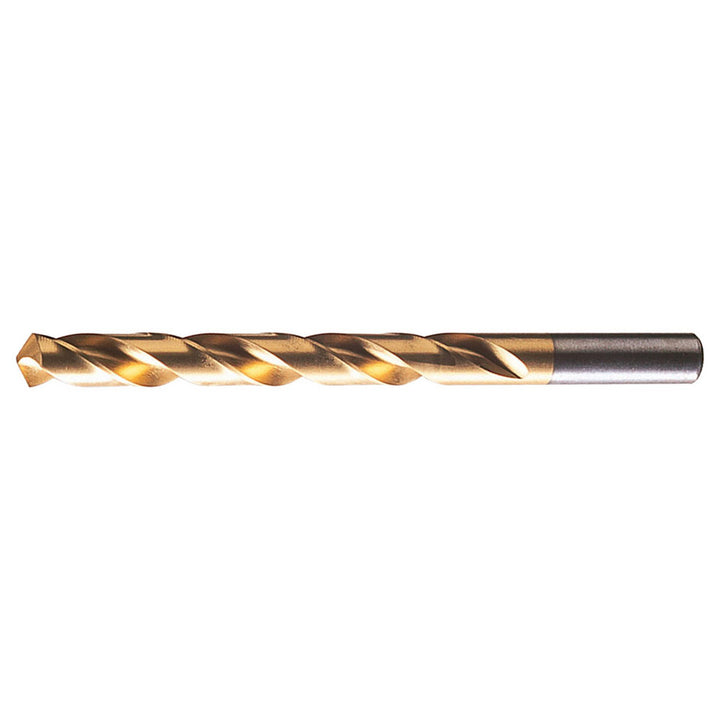

The Cle-Line C19176 is a 5/16" HSS drill bit with a TiN finish, 118° point. 3-3/16 flute length, 4-1/2 overall length. Series 1898TN.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeGeneral Purpose
Drill bit materialHSS
Drill bit size in5/16
Drill bit size range0.3000 - 0.3500
Drill point angle degrees118
Flute length in3-3/16
Flute typeRegular Spiral
Number of flutes2
Overall length in4-1/2
Point typeStandard
Shank diameter in5/16
Shank length1.3126
Shank typeStraight
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
