Cle-Line

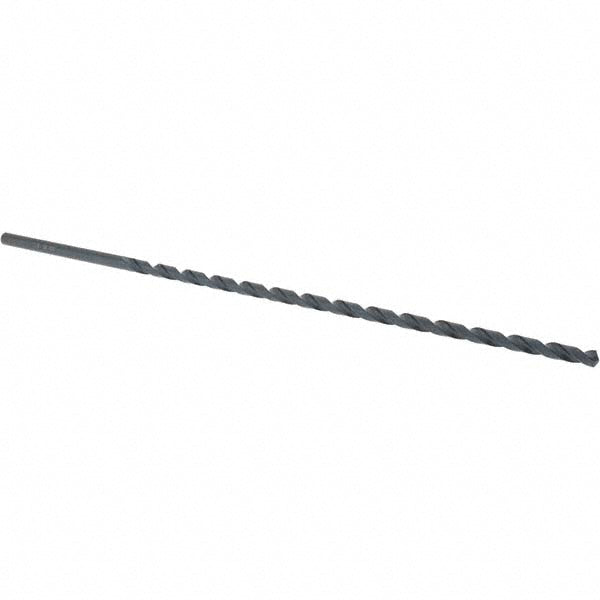

1/4" High-Speed Steel Drill Bit, Oxide, 118° point - Cle-Line C20444
MFR# C20444Series 1806
$26.41List $33.87
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/4
Flutes2
CoatingOxide
Description
The Cle-Line C20444 is a 1/4" High-Speed Steel drill bit with a Oxide finish, 118° point. Suited for cast iron, steel. 9 flute length, 12 overall length. Series 1806.
Specifications
Coating finishOxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit gradeGeneral Purpose
Drill bit size in1/4
Drill bit size letterE
Drill point angle118
Flute length in9
Flute typeSpiral
Number of flutes2
Overall length in12
Point typeNotched
Primary workpiece materialCast Iron; Steel
Shank diameter in1/4
Shank length3.0000
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M; California PROP 65
Tool materialHigh-Speed Steel
Web configurationTapered
Web thinningWeb-Thinned
