Cle-Line

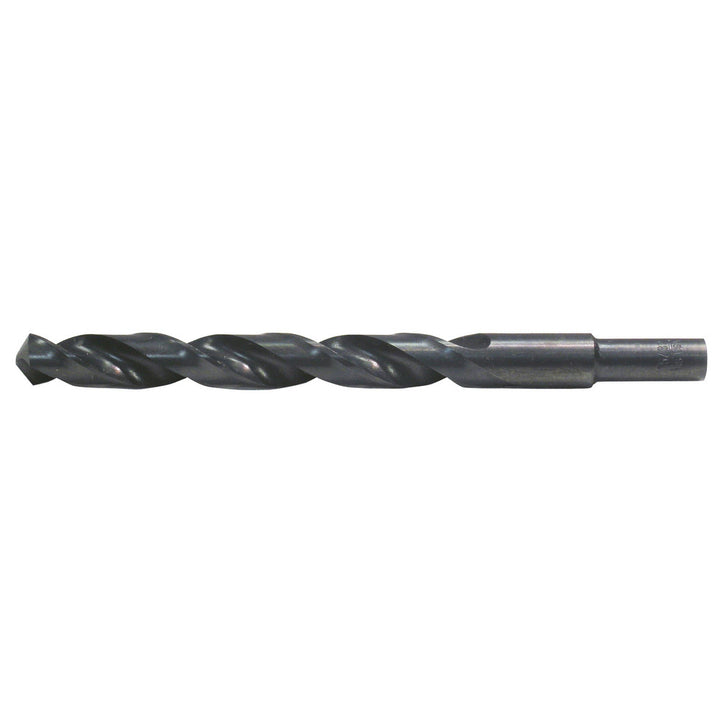

5/8" High-Speed Steel Reduced Shank Drill Bit, Coated, 135° point - Cle-Line C20661
MFR# C20661Series 1809
$67.29List $86.31
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size5/8
Flutes2
CoatingCoated
Description
The Cle-Line C20661 is a 5/8" High-Speed Steel Reduced Shank drill bit with a Coated finish, 135° point. 7-1/8 overall length. Series 1809.
Specifications
Coating finishCoated
CoolantNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0012 in
Drill bit size in5/8
Drill length typeReduced Shank
Drill point angle135
Flute length (mm)131.76
Flute typeSpiral
Maximum drilling depth (mm)131.76
Number of flutes2
Overall length in7-1/8
Point typeSplit
Shank diameter in3/8
Shank length1.9374
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialHigh-Speed Steel
