Cle-Line

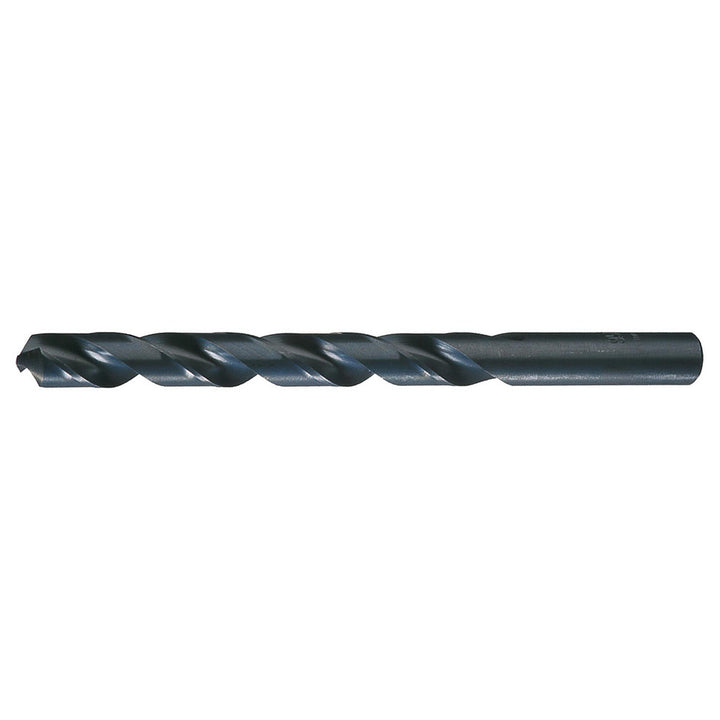

#55 High Speed Steel Drill Bit, Oxide, 118° point - Cle-Line C22650
MFR# C22650Series 1899
$1.32List $1.69
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingOxide
Description
The Cle-Line C22650 is a #55 High Speed Steel drill bit with a Oxide finish, 118° point. Suited for aluminum. 7/8 flute length, 1-7/8 overall length. Series 1899.
Specifications
Coating finishOxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size0.0520
Drill bit size range0.0500 - 0.1000
Drill bit size wire#55
Drill point angle degrees118
Flute length in7/8
Flute typeSpiral
Number of flutes2
Overall length in1-7/8
Point typeStandard
Primary workpiece materialAluminum
Shank diameter0.0520
Shank length1.0004
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceGeneral Purpose
Web configurationTapered
