Cle-Line

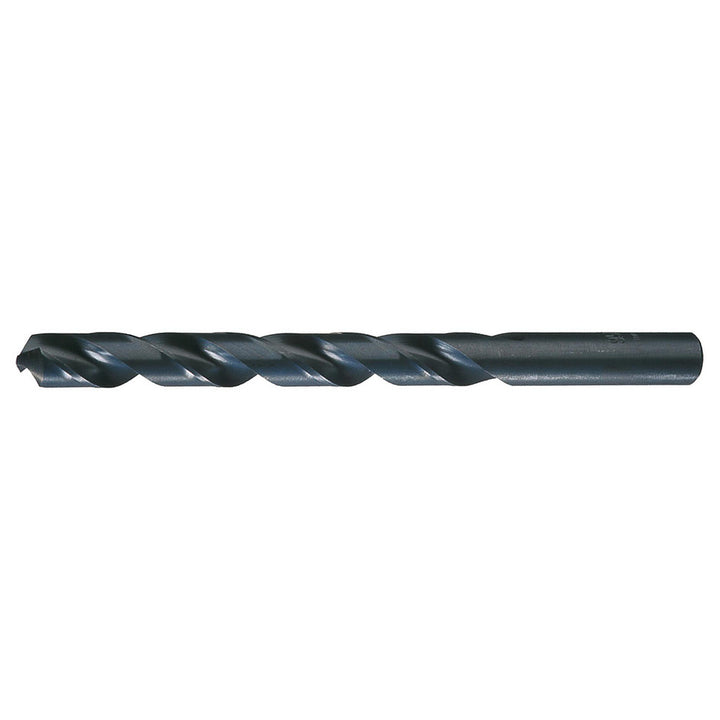

#49 High Speed Steel Drill Bit, Oxide, 118° point - Cle-Line C22657
MFR# C22657Series 1899
$1.22List $1.56
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingOxide
Description
The Cle-Line C22657 is a #49 High Speed Steel drill bit with a Oxide finish, 118° point. Suited for aluminum. 1 flute length, 2 overall length. Series 1899.
Specifications
Coating finishOxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size0.0730
Drill bit size range0.0500 - 0.1000
Drill bit size wire#49
Drill point angle degrees118
Flute length in1
Flute typeSpiral
Number of flutes2
Overall length in2
Point typeStandard
Primary workpiece materialAluminum
Shank diameter0.0730
Shank length1.0000
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
