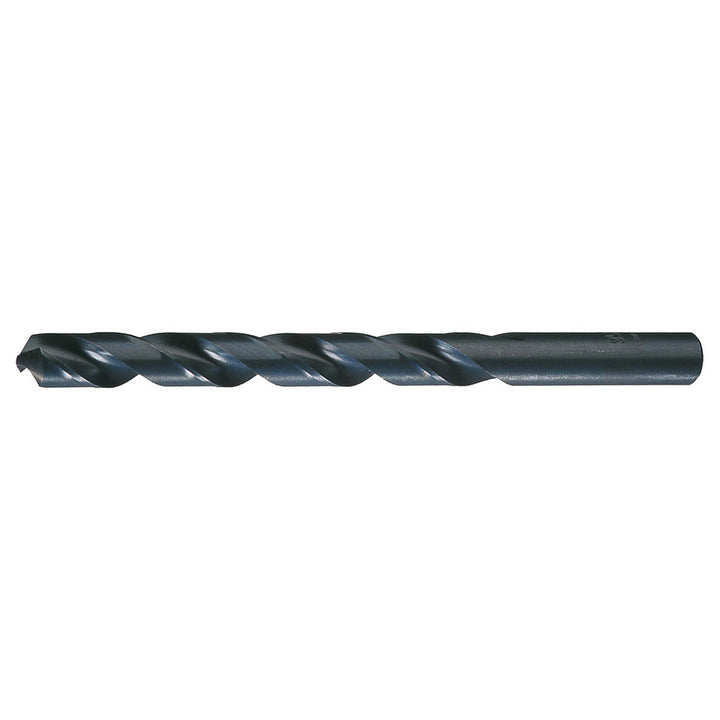

#30 HSS Drill Bit, Oxide, 118° point - Cle-Line C22680

Cle-Line

#30 HSS Drill Bit, Oxide, 118° point - Cle-Line C22680

MFR# C22680Series 1899

$1.47List $1.89 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingOxide

Description

The Cle-Line C22680 is a #30 HSS drill bit with a Oxide finish, 118° point. Suited for steel, cast iron. 1-5/8 flute length, 2-3/4 overall length. Series 1899.

Specifications

Coating finishOxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit gradeMaintenance
Drill bit materialHSS
Drill bit size0.1285
Drill bit size range0.1000 - 0.1500
Drill bit size wire#30
Drill point angle degrees118
Flute length in1-5/8
Flute typeRegular Spiral
Number of flutes2
Overall length in2-3/4
Point typeStandard
Primary workpiece materialSteel; Cast Iron
Shank diameter0.1285
Shank length1.1252
Shank typeStraight
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
