Cle-Line

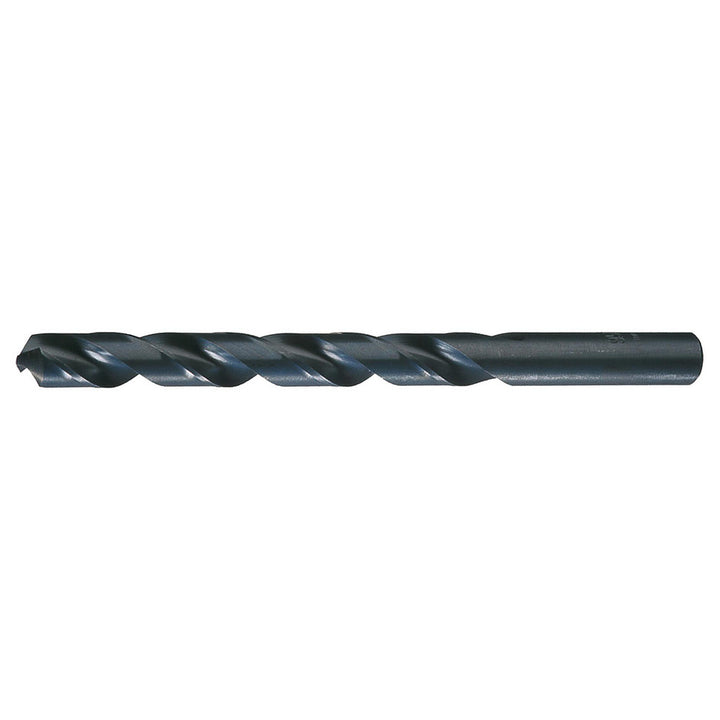

#19 High Speed Steel Drill Bit, Oxide, 118° point - Cle-Line C22693
MFR# C22693Series 1899
$1.71List $2.19
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Cle-Line C22693 is a #19 High Speed Steel drill bit with a Oxide finish, 118° point. Suited for aluminum. 2-1/8 flute length, 3-1/4 overall length. Series 1899.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit finish coatingOxide
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size0.1660
Drill bit size range0.1500 - 0.2000
Drill bit size wire#19
Drill point angle degrees118
Flute length in2-1/8
Flute typeSpiral
Number of flutes2
Overall length in3-1/4
Point typeStandard
Primary workpiece materialAluminum
Shank diameter0.1660
Shank length1.1252
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
