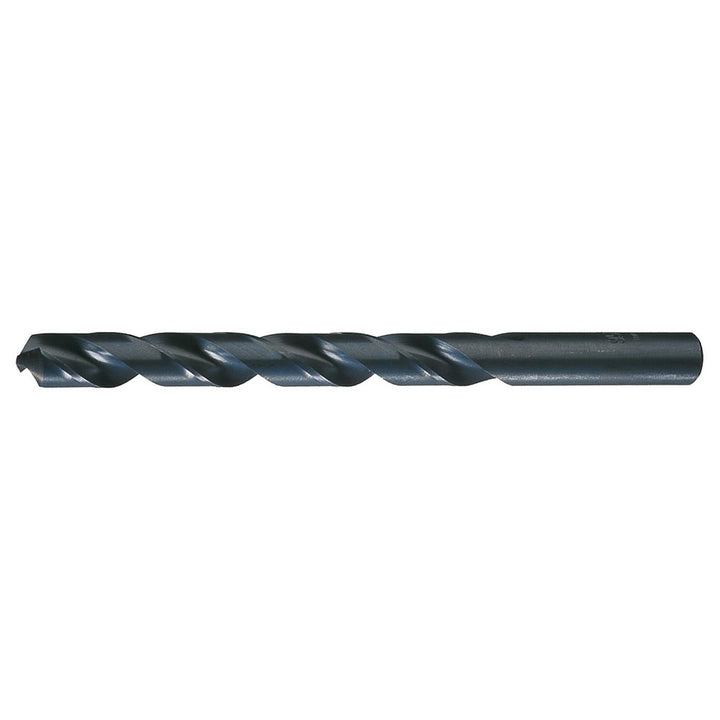

#9 High Speed Steel Drill Bit, Oxide, 118° point - Cle-Line C22705

Cle-Line

#9 High Speed Steel Drill Bit, Oxide, 118° point - Cle-Line C22705

MFR# C22705Series 1899

$2.20List $2.82 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingOxide

Description

The Cle-Line C22705 is a #9 High Speed Steel drill bit with a Oxide finish, 118° point. Suited for aluminum. 2-7/16 flute length, 3-5/8 overall length. Series 1899.

Specifications

Coating finishOxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size0.1960
Drill bit size range0.1500 - 0.2000
Drill bit size wire#9
Drill point angle degrees118
Flute length in2-7/16
Flute typeSpiral
Number of flutes2
Overall length in3-5/8
Point typeStandard
Primary workpiece materialAluminum
Shank diameter0.1960
Shank length1.1874
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
