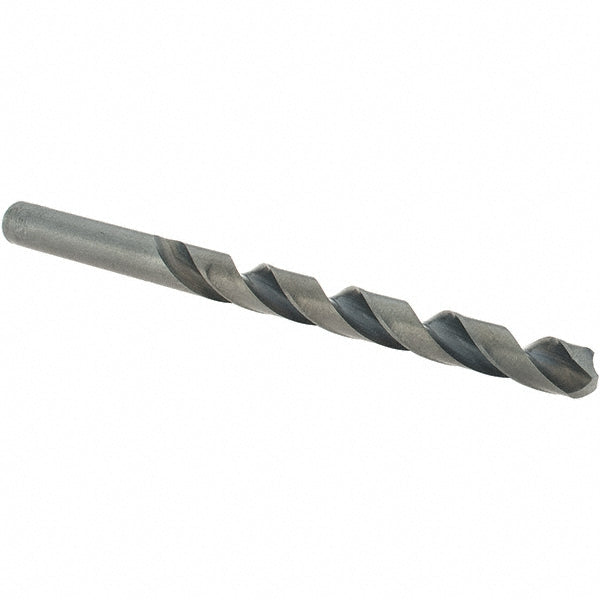

Letter F High Speed Steel Drill Bit, Oxide, 118° point - Cle-Line C22722

Cle-Line

Letter F High Speed Steel Drill Bit, Oxide, 118° point - Cle-Line C22722

MFR# C22722Series 1899

$3.22List $4.13 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

The Cle-Line C22722 is a Letter F High Speed Steel drill bit with a Oxide finish, 118° point. Suited for aluminum. 2-7/8 flute length, 4-1/8 overall length. Series 1899.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit finish coatingOxide
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size0.2570
Drill bit size letterF
Drill bit size range0.2500 - 0.3000
Drill point angle degrees118
Flute length in2-7/8
Flute typeSpiral
Number of flutes2
Overall length in4-1/8
Point typeStandard
Primary workpiece materialAluminum
Shank diameter0.2570
Shank length1.2500
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
