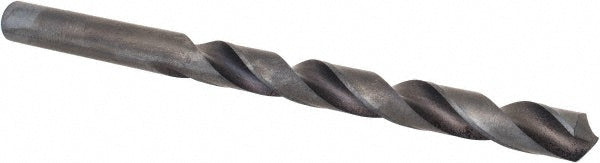

19/64" HSS Drill Bit, Oxide, 118° point - Cle-Line C22732

Cle-Line

19/64" HSS Drill Bit, Oxide, 118° point - Cle-Line C22732

MFR# C22732Series 1899

$3.59List $4.61 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size19/64
Flutes2
CoatingOxide

Description

The Cle-Line C22732 is a 19/64" HSS drill bit with a Oxide finish, 118° point. Suited for steel, cast iron. 3-1/16 flute length, 4-3/8 overall length. Series 1899.

Specifications

Coating finishOxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeMaintenance
Drill bit materialHSS
Drill bit size in19/64
Drill bit size range0.2500 - 0.3000
Drill point angle degrees118
Flute length in3-1/16
Flute typeRegular Spiral
Number of flutes2
Overall length in4-3/8
Point typeStandard
Primary workpiece materialSteel; Cast Iron
Shank diameter in19/64
Shank length1.3126
Shank typeStraight
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
