Cle-Line

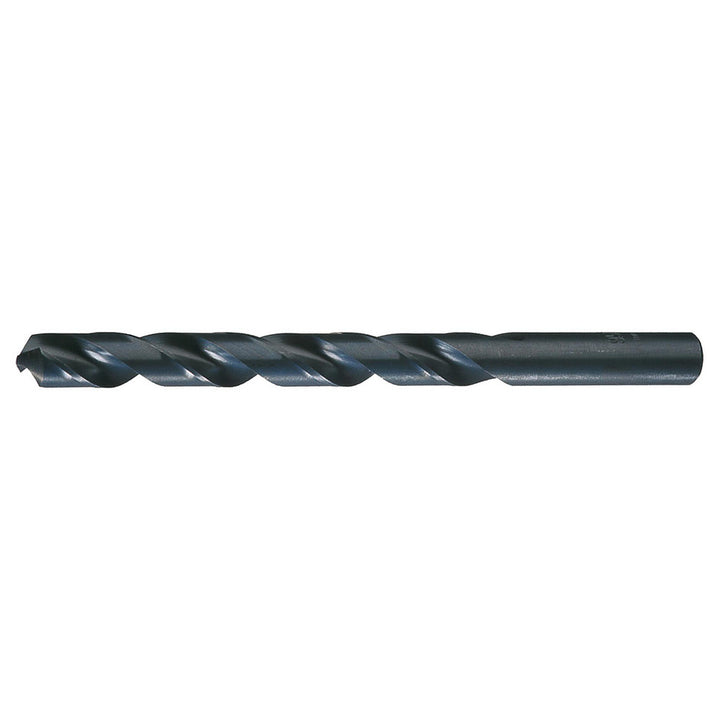

0.1575" High Speed Steel Drill Bit, Oxide, 118° point - Cle-Line C22838
MFR# C22838Series 1899
$1.56List $2.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingOxide
Description
The Cle-Line C22838 is a 0.1575" High Speed Steel drill bit with a Oxide finish, 118° point. Suited for aluminum. Series 1899.
Specifications
Coating finishOxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size0.1575
Drill bit size range0.1500 - 0.2000
Drill point angle degrees118
Flute length1.6929
Flute typeSpiral
Number of flutes2
Overall length2.9528
Point typeStandard
Primary workpiece materialAluminum
Shank diameter0.1575
Shank length1.2598
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
