Cle-Line

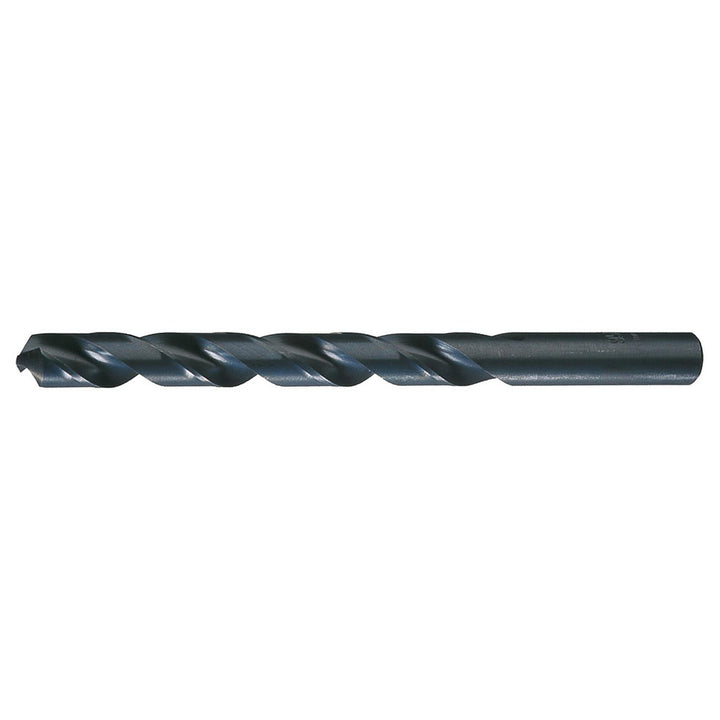

0.2165" High Speed Steel Drill Bit, Oxide, 118° point - Cle-Line C22853
MFR# C22853Series 1899
$2.38List $3.06
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingOxide
Description
The Cle-Line C22853 is a 0.2165" High Speed Steel drill bit with a Oxide finish, 118° point. Suited for aluminum. Series 1899.
Specifications
Coating finishOxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size0.2165
Drill bit size range0.2000 - 0.2500
Drill point angle degrees118
Flute length2.2441
Flute typeSpiral
Number of flutes2
Overall length3.6614
Point typeStandard
Primary workpiece materialAluminum
Shank diameter0.2165
Shank length1.4173
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
