Cle-Line

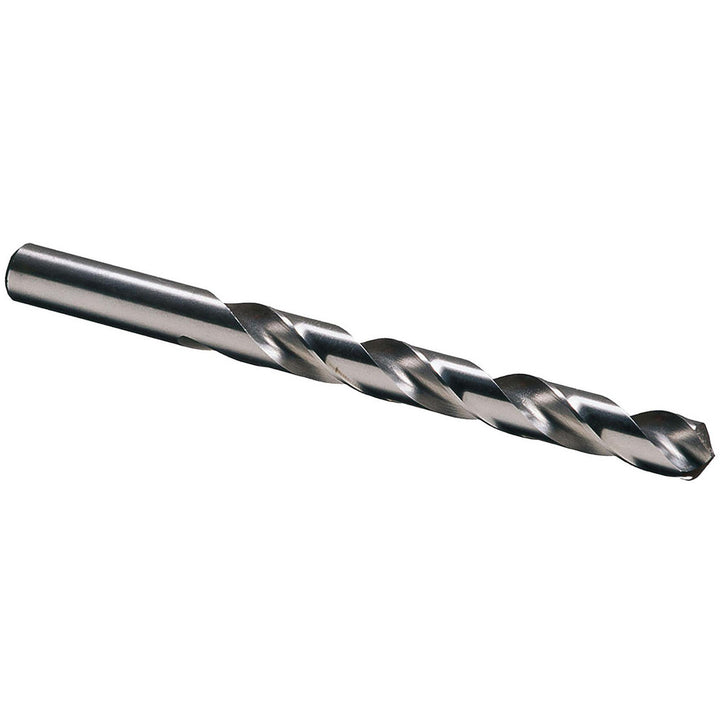

5/32" HSS Drill Bit, 118° point - Cle-Line C23001
MFR# C23001Series 1898
$1.51List $1.94
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size5/32
Flutes2
Description
The Cle-Line C23001 is a 5/32" HSS drill bit, 118° point. Suited for aluminum & non-ferrous. 2 flute length, 3-1/8 overall length. Series 1898.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit gradeMaintenance
Drill bit materialHSS
Drill bit size in5/32
Drill bit size range0.1500 - 0.2000
Drill point angle degrees118
Flute length in2
Flute typeRegular Spiral
Number of flutes2
Overall length in3-1/8
Point typeStandard
Primary workpiece materialAluminum & Non-Ferrous
Shank diameter in5/32
Shank length1.1252
Shank typeStraight
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
