5/16" High Speed Steel Drill Bit, 118° point - Cle-Line C23011
MFR# C23011Series 1898
$3.85List $4.94
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size5/16
Flutes2
Description

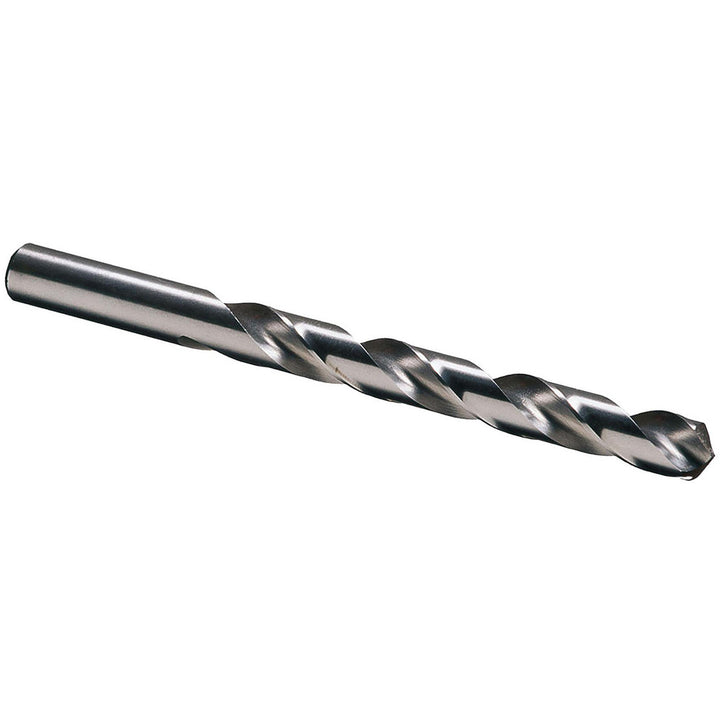

The Cle-Line C23011 is a 5/16" High Speed Steel drill bit, 118° point. Suited for aluminum. 3-3/16 flute length, 4-1/2 overall length. Series 1898.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size in5/16
Drill bit size range0.3000 - 0.3500
Drill point angle degrees118
Flute length in3-3/16
Flute typeSpiral
Number of flutes2
Overall length in4-1/2
Point typeStandard
Primary workpiece materialAluminum
Shank diameter in5/16
Shank length1.3126
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
