Cle-Line

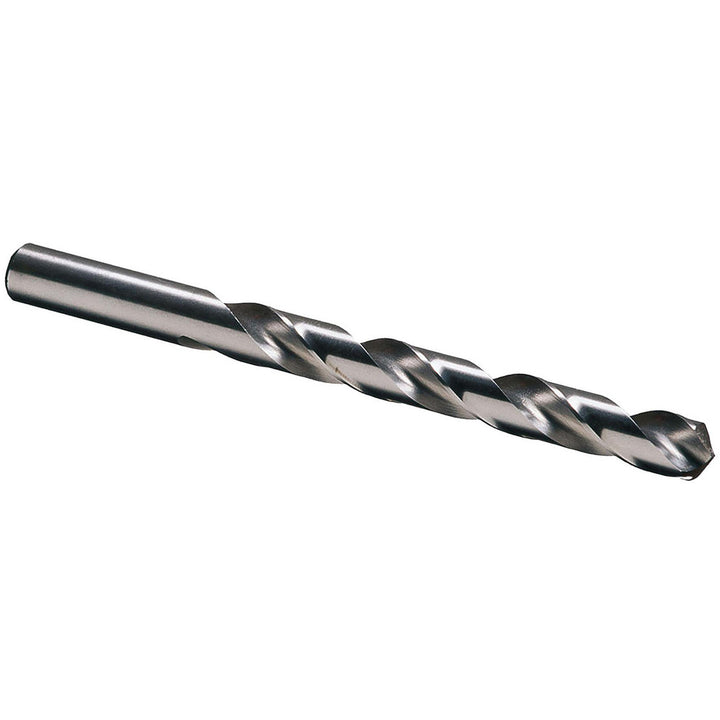

3/8" High Speed Steel Drill Bit, 118° point - Cle-Line C23015
MFR# C23015Series 1898
$5.73List $7.35
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size3/8
Flutes2
Description
The Cle-Line C23015 is a 3/8" High Speed Steel drill bit, 118° point. Suited for aluminum. 3-5/8 flute length, 5 overall length. Series 1898.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size in3/8
Drill bit size range0.3500 - 0.4000
Drill point angle degrees118
Flute length in3-5/8
Flute typeSpiral
Number of flutes2
Overall length in5
Point typeStandard
Primary workpiece materialAluminum
Shank diameter in3/8
Shank length1.3752
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
