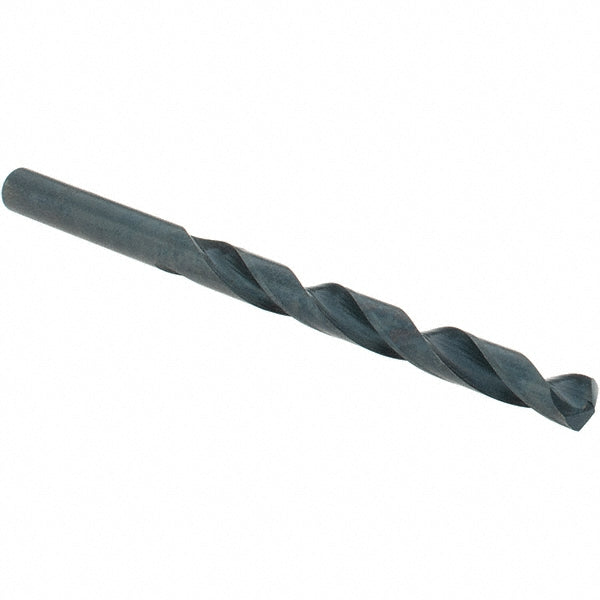

0.2570" High Speed Steel Drill Bit, Oxide, 135° point - Cle-Line C23104
MFR# C23104Series 1801
$3.66List $4.69
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Cle-Line C23104 is a 0.2570" High Speed Steel drill bit with a Oxide finish, 135° point. Suited for cast iron, steel. Series 1801.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit finish coatingOxide
Drill bit materialHigh Speed Steel
Drill bit size0.2570
Drill point angle degrees135
Flute length2.8750
Flute typeSpiral
Number of flutes2
Overall length4.1250
Point typeSplit
Primary workpiece materialCast Iron; Steel
Shank diameter0.2570
Shank length1.2500
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
