Cle-Line

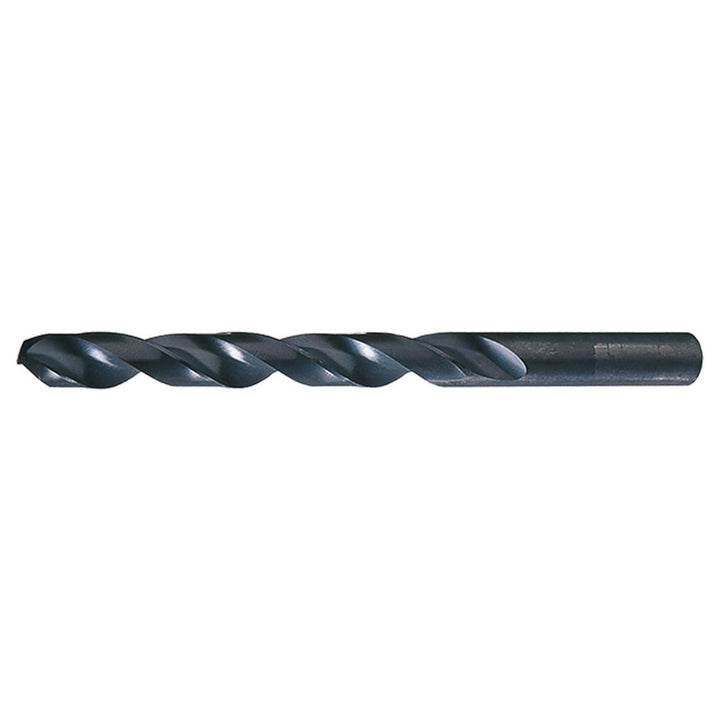

1/16" HSS Drill Bit, Oxide, 135° point - Cle-Line C23125
MFR# C23125
$1.28List $1.64
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/16
CoatingOxide
Description
The Cle-Line C23125 is a 1/16" HSS drill bit with a Oxide finish, 135° point. Suited for steel, cast iron. 7/8 flute length, 1-7/8 overall length.
Specifications
Coating finishOxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit gradeHeavy Duty
Drill bit materialHSS
Drill bit size in1/16
Drill bit size range0.0500 - 0.1000
Drill point angle degrees135
Flute length in7/8
Flute typeRegular Spiral
Overall length in1-7/8
Point typeSplit Point
Primary workpiece materialSteel; Cast Iron
Shank diameter in1/16
Shank length1.0004
Shank typeStraight
Spiral typeRegular
Web configurationTapered
